Durable LoRaWAN Water Quality Dissolved Oxygen Sensor

Durable LoRaWAN Water Quality Dissolved Oxygen Sensor

xiamen ZoneWu LoRaWAN water quality dissolved oxygen sensor integrates data collection, monitoring, and transmission functions. The built-in temperature transmitter can realize automatic temperature compensation. It adopts imported fluorescent film, with stable and reliable performance, and paired with LoRa wireless transmission technology, it can ensure stable data transmission even at a long distance.

  • Product Model :

    LW101-DO
  • Power Supply Mode :

    Battery or External DC
  • Frequency :

    CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
  • MAC Version :

    LoRaWAN 1.0.3
  • Mode :

    OTAA Class A/C
  • Weight :

    150g

Durable LoRaWAN Water Quality Dissolved Oxygen Sensor



xiamen ZoneWu  LoRaWAN water quality dissolved oxygen sensor can measure the dissolved oxygen in water.

Xiamen ZoneWu LoRaWAN water quality Dissolved Oxygen sensor Features:

The DO sensor measures DO with a fluorimetric method that does not consume oxygen and does not use electrolytes.



Temperature-compensated transmitter is installed inside, which can automatically adjust the result of a measurement according to the water temperature to ensure the accuracy of the data.



Imported fluorescent film is used, the quality is good, and the measured data is stable and reliable.

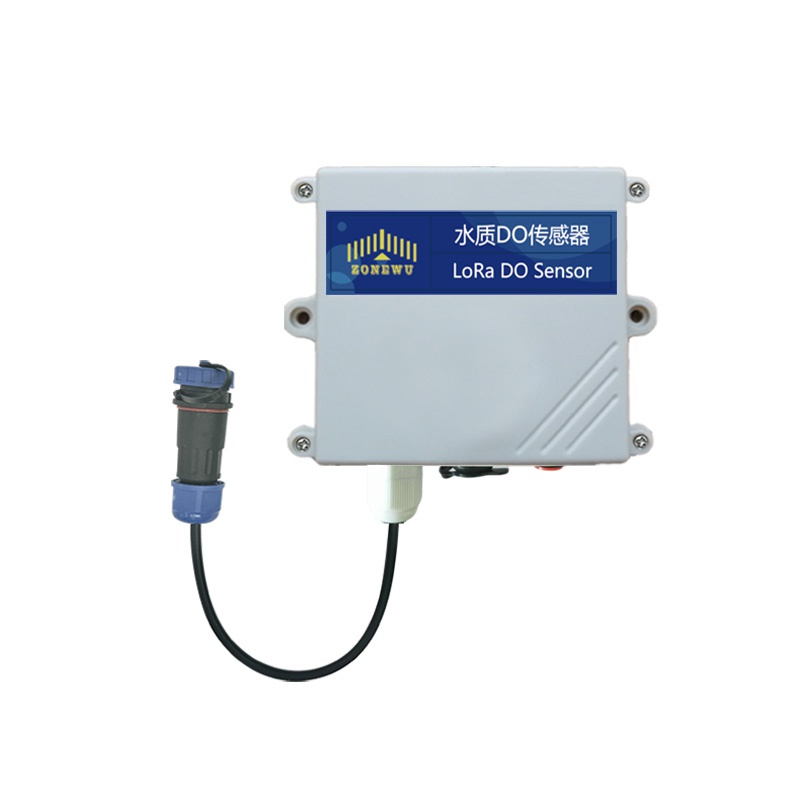

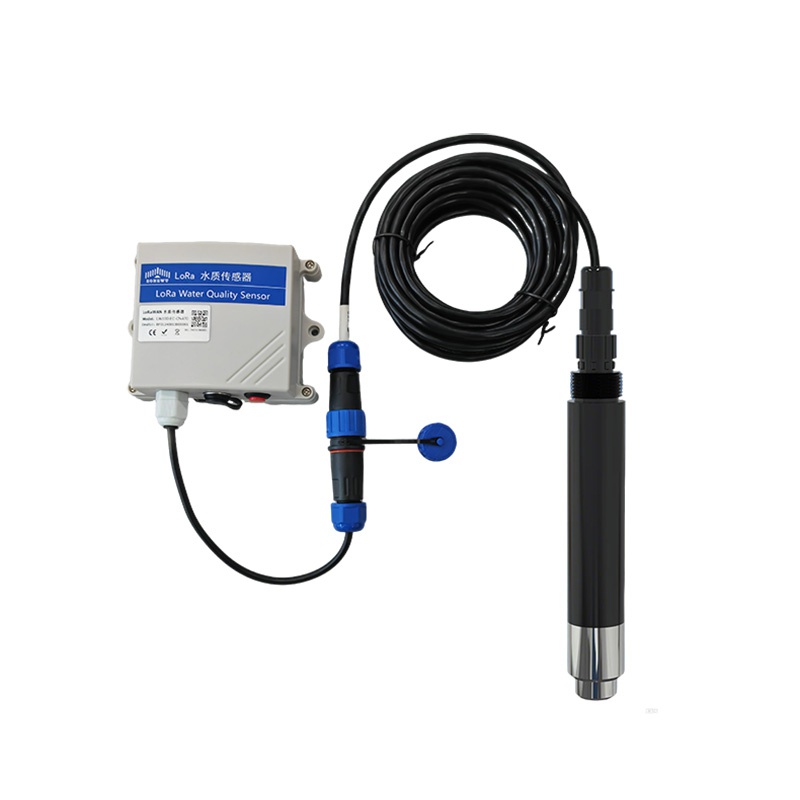

The LoRaWAN collector and water quality dissolved oxygen transmitter are connected with aviation connectors, which are convenient and fast to install and disassemble.



It is based on LoRaTM spread spectrum modulation technology, and the signal can be transmitted far, so there is no need to worry about distance.



It can be very useful in water treatment, aquaculture, environmental monitoring and other industries.



Technical Parameters

Power Supply

DC12/24V

Weight

150g

Operating Emperature

0~40℃

Measuring Principle

Fluorescence

Measuring Range

0~20mg/L (0~200% saturation)

Measurement Error

±3%FS;±0.5℃(25℃

Resolution Ratio

0.01mg/L;0.1%;0.1℃

Fluorescent Film Lifespan

Normal use for 1 year

LDO

Fluorescence dissolved oxygen transmitter (freshwater version)

LDOS

Fluorescence dissolved oxygen transmitter (seawater version)

Pressurization

0.6Mpa

DO Transmitter

Line length

Default 5m (other lengths can be customized)

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Mode

OTAA  Class A/C

Reporting cycle

External power supply:10min(Default reporting cycle)

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Equipment information

(Reference)

AppEUI:0000000000000001

DevEUI:aaaa202404150001

AppKey:00001111222233334444555566667777

MAC Version:LoRaWAN 1.0.3

 Product Applications
1. Aquaculture: Real time monitoring of oxygen content in water.
2. Sewage treatment: promote water purification. Ensure the activity of microorganisms and improve the efficiency of sewage treatment.
3. Environmental protection: Helps evaluate water quality and take corresponding protective measures.
4. Natural water monitoring: It is of great significance for maintaining the ecological balance of water bodies and protecting aquatic organisms.

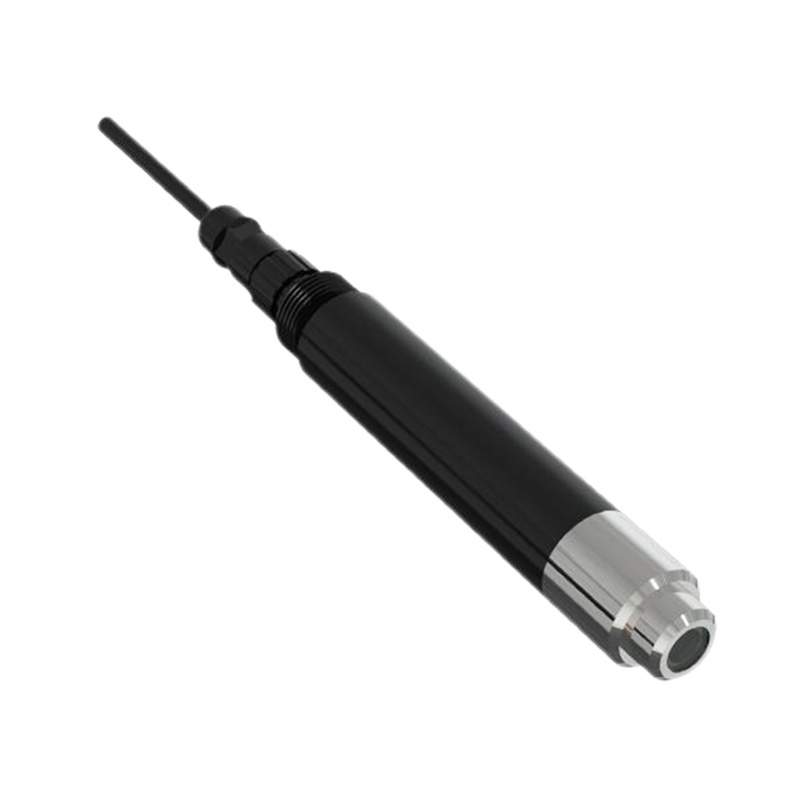

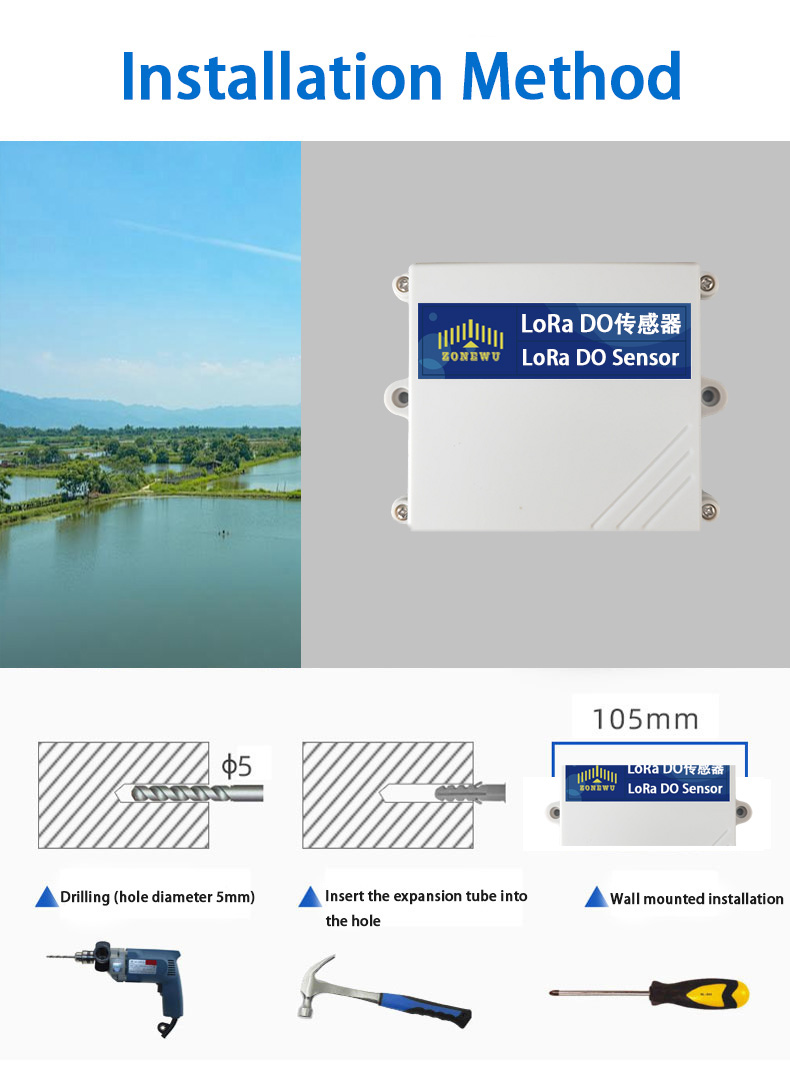

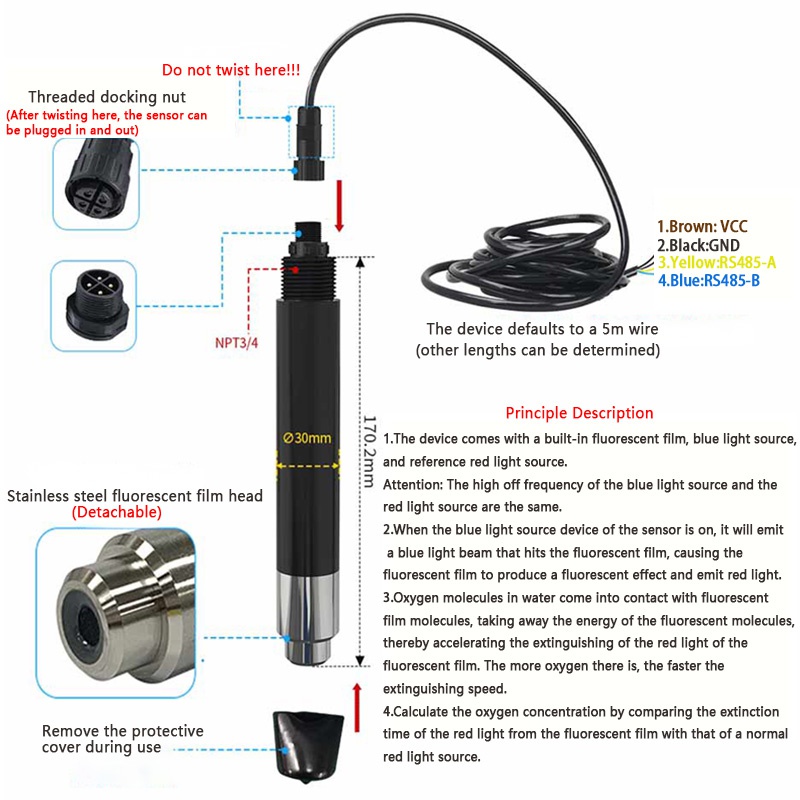

DO Transmitter Size and Installation

1. Submerged installation: The lead wire of the equipment is passed through the waterproof pipe, and the 3/4 thread on the top of the equipment is connected with the 3/4 thread of the waterproof pipe with raw material tape. Make sure that the top of the equipment and the equipment lines are free of water.

2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.

Detailed Images



Common knowledge of conductivity DO

What is the definition, expression and source of dissolved oxygen

Dissolved oxygen refers to the molecular oxygen dissolved in water, usually denoted as DO, expressed in milligrams of oxygen per liter of water and saturation percentage. The amount of dissolved oxygen generally comes from the supply of oxygen in the air or the oxygen produced by photosynthesis of plants in water.



How is dissolved oxygen in water consumed by reducing substances and biological activities

Dissolved oxygen is consumed by reducing substances such as sulfides, nitrite ions, and ferrous ions in water, as well as by the respiration of aquatic organisms and the oxidative decomposition of organic matter by aerobic microorganisms.



What factors affect dissolved oxygen saturation content and how do they affect it

The saturation content of dissolved oxygen is closely related to the partial pressure of oxygen in the air, atmospheric pressure, water temperature, and water salinity. In freshwater, its dissolved oxygen is slightly higher than in seawater; The dissolved oxygen content decreases with the increase of water temperature; When the water temperature decreases, its dissolved oxygen content will increase; The lower the atmospheric pressure, the lower the amount of dissolved oxygen.



Why is dissolved oxygen called the capital of water body, and what is the relationship between it and the decomposition of organic pollutants

Dissolved gas is the capital of water bodies and a basis for studying the self purification capacity of water. The decomposition of organic pollutants in water requires the consumption of oxygen, and the higher the dissolved oxygen, the stronger the ability of the water to decompose organic pollutants.



How do different dissolved oxygen levels affect fish respiration

At 20 ° C and 100kPa, approximately 9mg/L of dissolved oxygen is present in pure water. When the dissolved oxygen level in water drops to 5mg/L, some fish experience difficulty breathing.



Application Scenarios

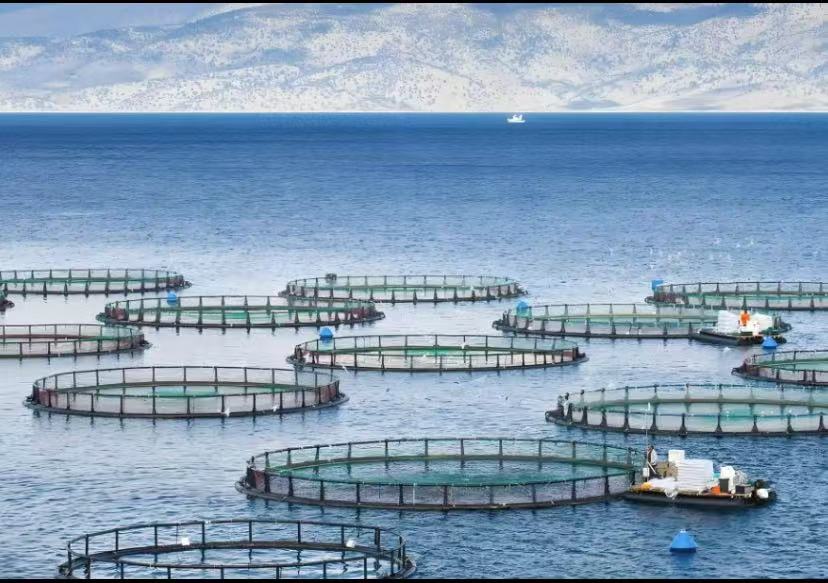

Aquaculture

Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.



Seawater Monitoring

Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

Industrial Wastewater

Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.

FAQ
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.



3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.



Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

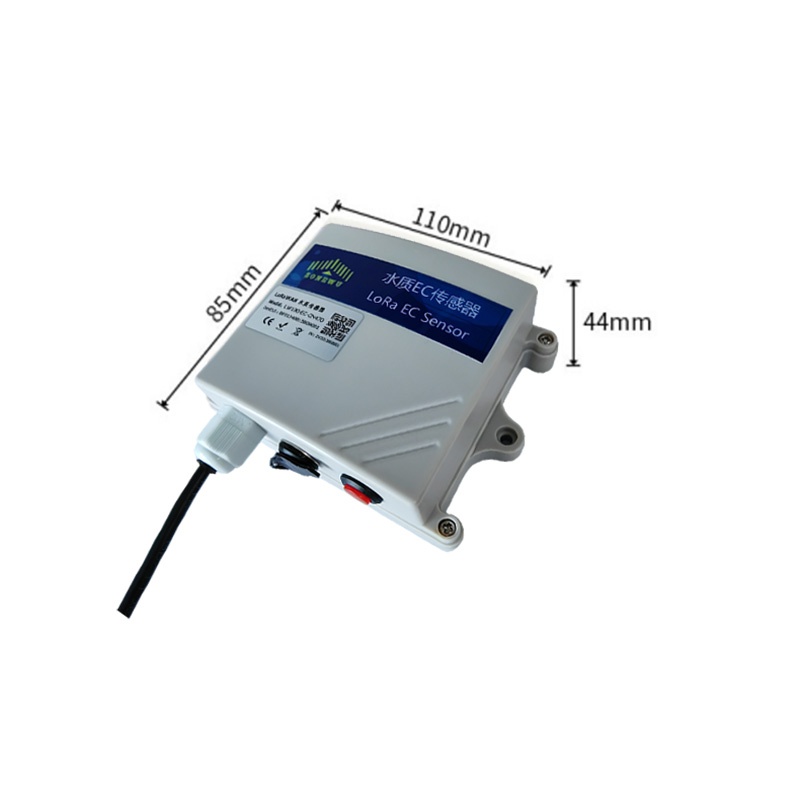

LoRaWAN Water Quality EC Sensor
