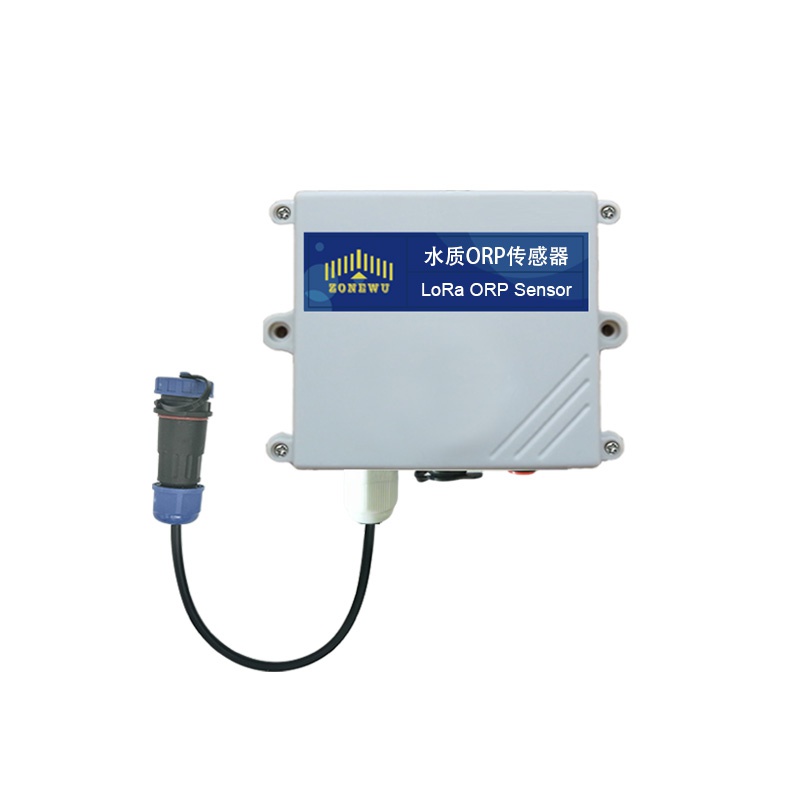

xiamen ZoneWu LoRaWAN wireless water quality ORP sensor is a new type of wireless IoT sensing device with excellent performance. It adopts high-purity platinum material electrodes, has excellent acid and alkali resistance and anti-oxidation characteristics, and can quickly output accurate and stable measurement data. The sensor relies on LoRa technology to realize long-distance data transmission, can provide real-time feedback on ORP data, and helps maintain the oxidation-reduction balance of water quality. It can play an important role in industrial water treatment, aquaculture scenarios, and environmental monitoring work.
Product Model :
LW103-ORPPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
200gWireless Water Quality ORP Sensor
xiamen ZoneWu LoRaWAN water quality ORP sensor is to measure the oxidation-reduction potential of water.
Xiamen ZoneWu LoRaWAN water quality ORP sensor Features:

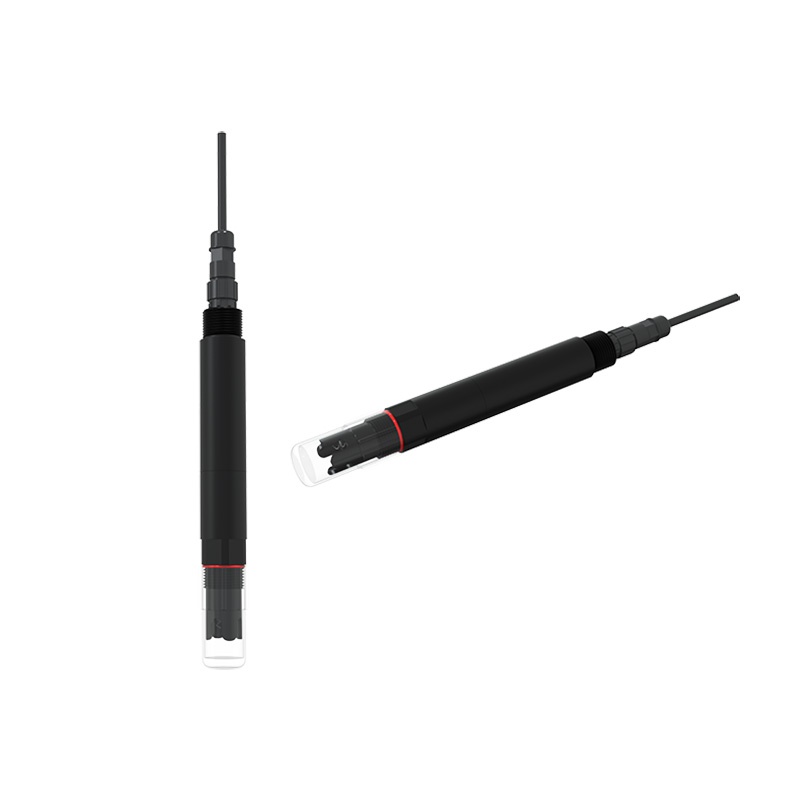

ORP sensor electrode, is made of high-purity platinum composite electrode, acid and alkali resistance, oxidation resistance.
The measurement accuracy is high, the reaction speed is fast, the data is stable, and temperature can be measured.
It uses an all-in-one design, and the structure is simple and light.
Connected through an aviation connector and a LoRaWAN collector, using LoRaWAN to transmit data.
It is very convenient to use.
It can monitor the oxidation-reduction potential of cyanide-containing and chromium-containing industrial wastewater, natural water bodies, and aquaculture environments online.
Technical Parameters
|
Power Supply |
ER26500 Li-SOCl2 8500 mAh battery,3.6V |
|
Weight |
200g |
|
Working Conditions |
0~60℃ |
|
Measuring Range |
-1999~1999mV |
|
Measurement Error |
≤±5mV(25 ℃, 222mv standard solution) |
|
Resolution Ratio |
1mV |
|
Temperature measurement range |
0~60℃,Resolution Ratio:0.1℃ |
|
Electrode usage cycle |
12 months |
|
Pressurization |
0.6Mpa |
|
ORP Transmitter Line length |
Default 5m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A |
|
Reporting cycle |
60min(Default ) |
|
Battery Life |
≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of EC sensor, it is not recommended to use short cycle data reporting. |
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |

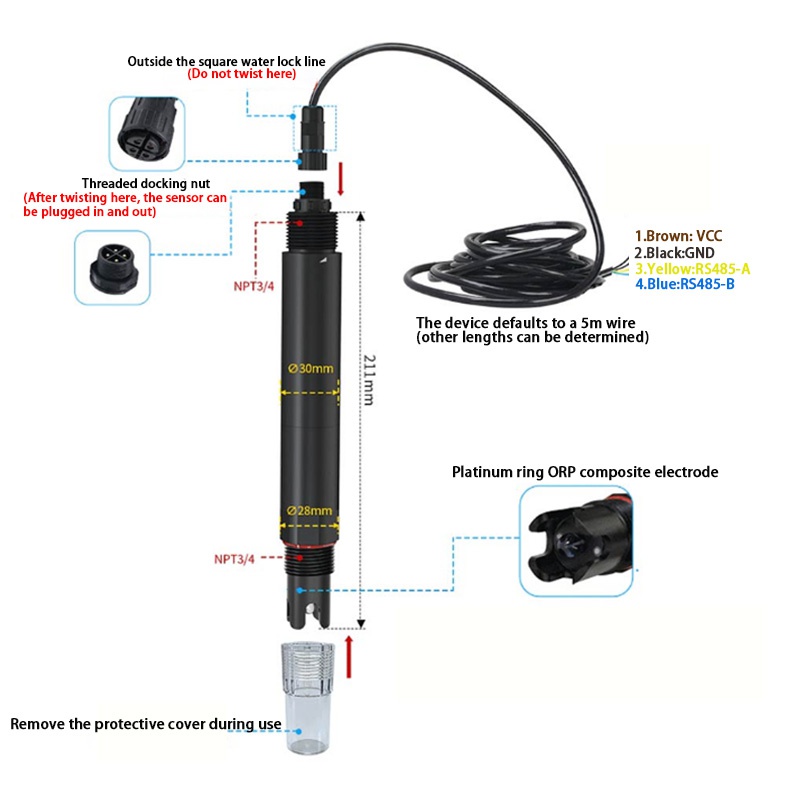

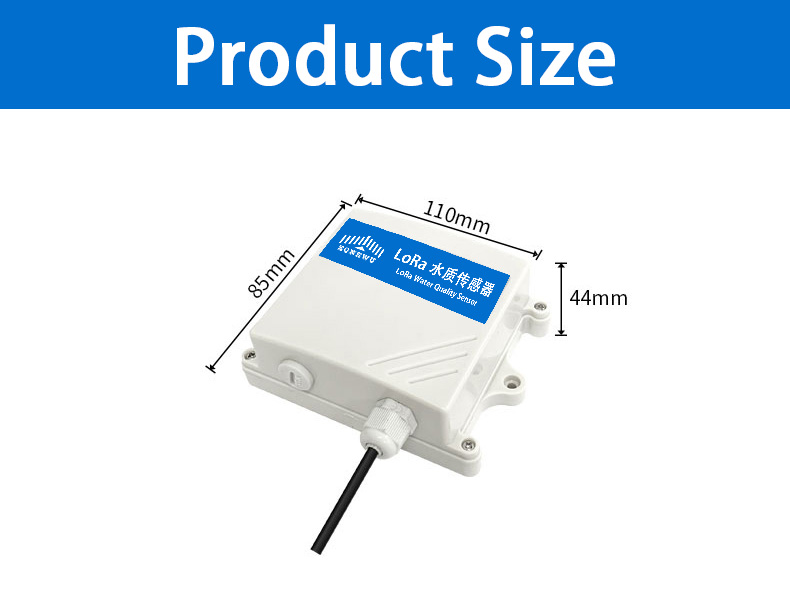

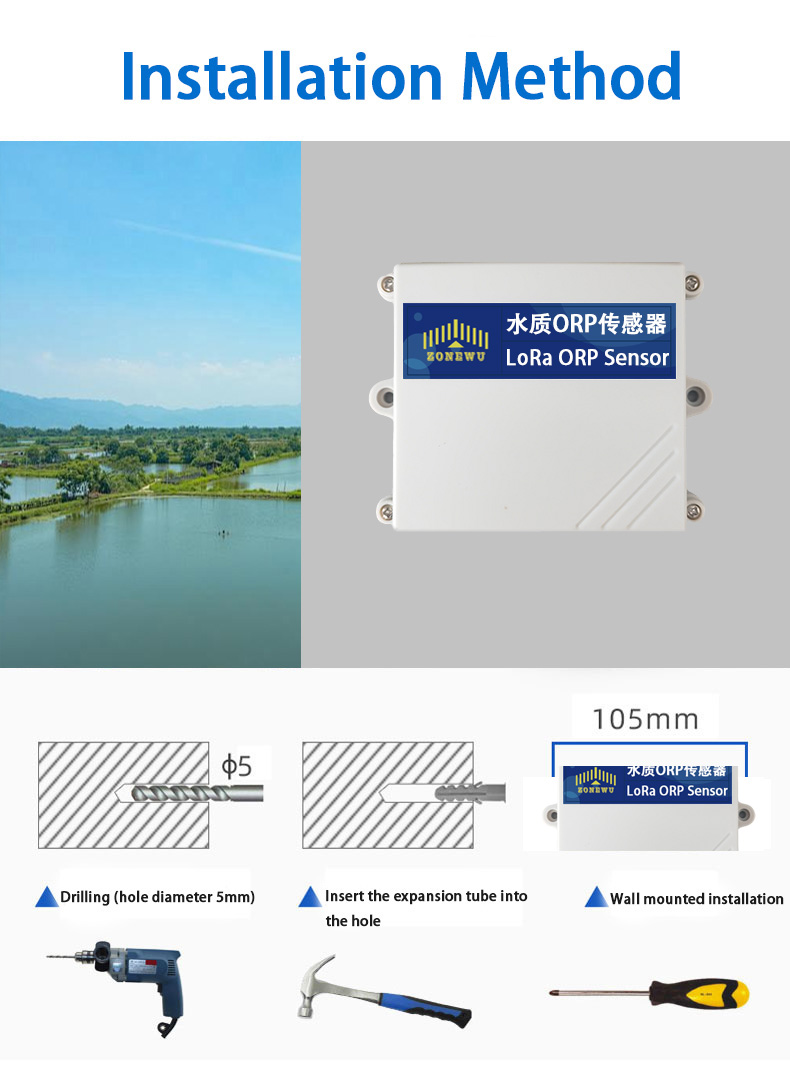

ORP Transmitter Size and Installation
1. Submerged installation: The lead wire of the equipment is passed through the waterproof pipe, and the 3/4 thread on the top of the equipment is connected with the 3/4 thread of the waterproof pipe with raw material tape. Make sure that the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.
Common knowledge of conductivity ORP
What is ORP
ORP stands for the oxidation-reduction potential of a solution and is an important indicator of water quality. It cannot independently judge the quality of water, but can comprehensively reflect the ecological environment in aquatic systems based on other water quality indicators.
What does a high or low oxidation reduction mean
The higher the oxidation-reduction potential, the stronger the oxidizing property, and the lower the potential, the weaker the oxidizing property.
What do the positive and negative potentials represent?
A positive potential indicates that the solution exhibits certain oxidizing properties, while a negative potential indicates that the solution exhibits reducing properties.
What does ORP do
Indirectly reflects the degree of concentration accumulation of substances such as nitric acid in water.
Monitor the oxidation efficiency of microorganisms in the filtration process.
Reflects the concentration of certain inorganic substances in water and the status of aquatic organisms.
Application Scenarios
Aquaculture
Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

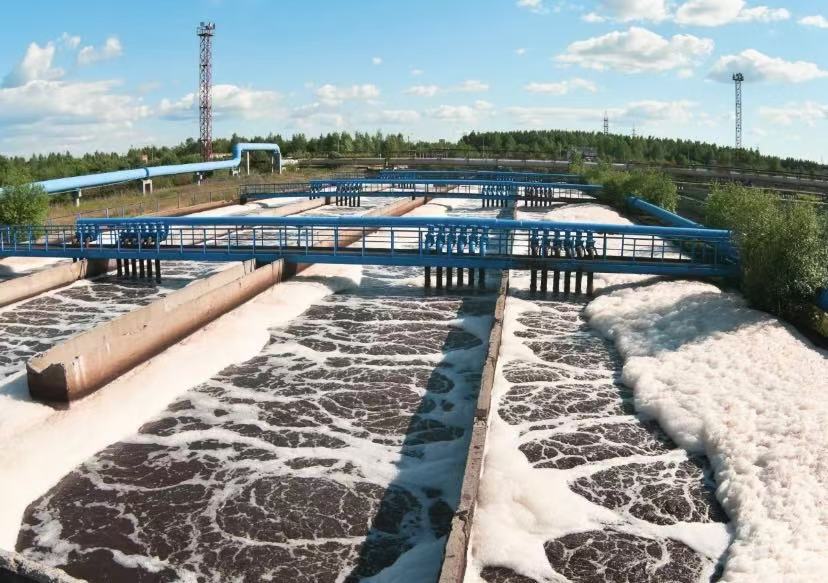

Industrial Wastewater
Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.
