xiamen ZoneWu LoRaWAN Water Quality Ca2+ Ion Sensor is an LPWAN wireless low-power IOT sensor that can both collect water quality data, monitor water quality changes in real time, and transmit the data - all three functions together. It uses a filtering algorithm that is not too afraid of outside light interference, and can automatically adjust the measured data according to temperature, which is especially suitable for long-term monitoring of water quality always in the water. In addition, it conforms to the standard LoRaWAN protocol, which can transmit data far away and is very convenient to use.
Product Model :
LW111-CAPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
150gLow-power LoRaWAN Water Quality Ca2+ Ion Sensor
xiamen ZoneWu LoRaWAN Water Quality Ca2+ Ion Sensor is a wireless sensor used to measure magnesium ion content in water.
xiamen ZoneWu LoRaWAN water Quality Ca2+ Ion Sensor Features:
LoRaWAN water quality ion sensor is very powerful, it collects water quality data, monitoring water quality status and data transmission these three functions are collected in one device, it is particularly convenient to use.
Belongs to the LPWAN wireless low-power Internet of Things sensor, less electricity, through the wireless way to work, do not worry about the cost of electricity and wiring trouble.
The use of filtering algorithm, the interference of outside light has a strong resistance, even if the surrounding light changes, it does not affect its normal detection of water quality.
Can automatically adjust the measured data according to the temperature change, no matter how the temperature of the water changes, can ensure that the measured data is accurate.
Because of these advantages, it is particularly suitable for the water, has been online long-term monitoring of water quality, can work stably and reliably.
Support standard LoRaWAN protocol, can achieve long distance wireless data transmission, the detected water quality data to the distant receiving equipment.
Product Parameters
| Power Supply | 12/24VDC |
| Weight | 150g |
| Operating Temperature | 0~40℃ |
| Measuring Range |
0-100mg/L, 0-1000mg/L(default) Ionic sensors are more susceptible to interference from other ions in the water and can easily cause membrane head failure. Please purchase with caution ! |
| Measurement Error | ±5%FS（25℃） |
| Resolution Ratio |
0-100mg/L: 0.01mg/L 0-1000 mg/L :0.1mg/L |
| Temperature measurement range |
0~50℃,Resolution Ratio:0.1℃ (When manually compensating for temperature, it is set to 25 ℃ by default.) |
| Electrode usage cycle | Normal use for 2 years |
| Pressurization | 0.6Mpa |
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A |
| Reporting cycle | 60min(Default ) |
| Battery Life |
≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of Ion sensor, it is not recommended to use shortcycle data reporting. |
|
Communication Protocol Equipment information (Reference) |
LoRaWAN,LoRa TDMA Networking AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Product Applications
1.High sensitivity and accuracy:the water quality calcium ion sensor adopts advanced electrochemical principles, can accurately measure the concentration of calcium ions in water samples.
2.Real-time monitoring: the sensor can realize real-time monitoring and data analysis, and timely reflect the dynamic situation of water quality.
3.High stability and reliability: the sensor has high stability and reliability, can be continuously monitored for a long time, reduce the frequency of calibration and maintenance.
4.Automatic calibration: the sensor has an automatic calibration function, reducing the frequency and complexity of manual calibration.
5.low power consumption and anti-interference design: the sensor has low power consumption, and the internal circuit has anti-interference design to ensure the accuracy of measurement.
6.easy maintenance: the sensor structure is simple, easy to disassemble and clean, convenient for users to maintain and maintain.

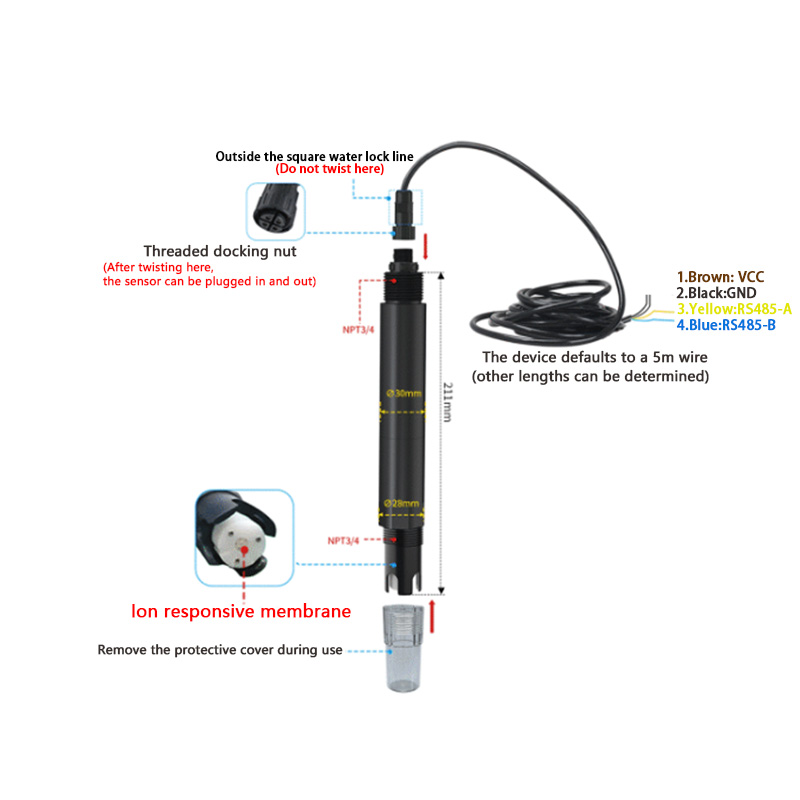

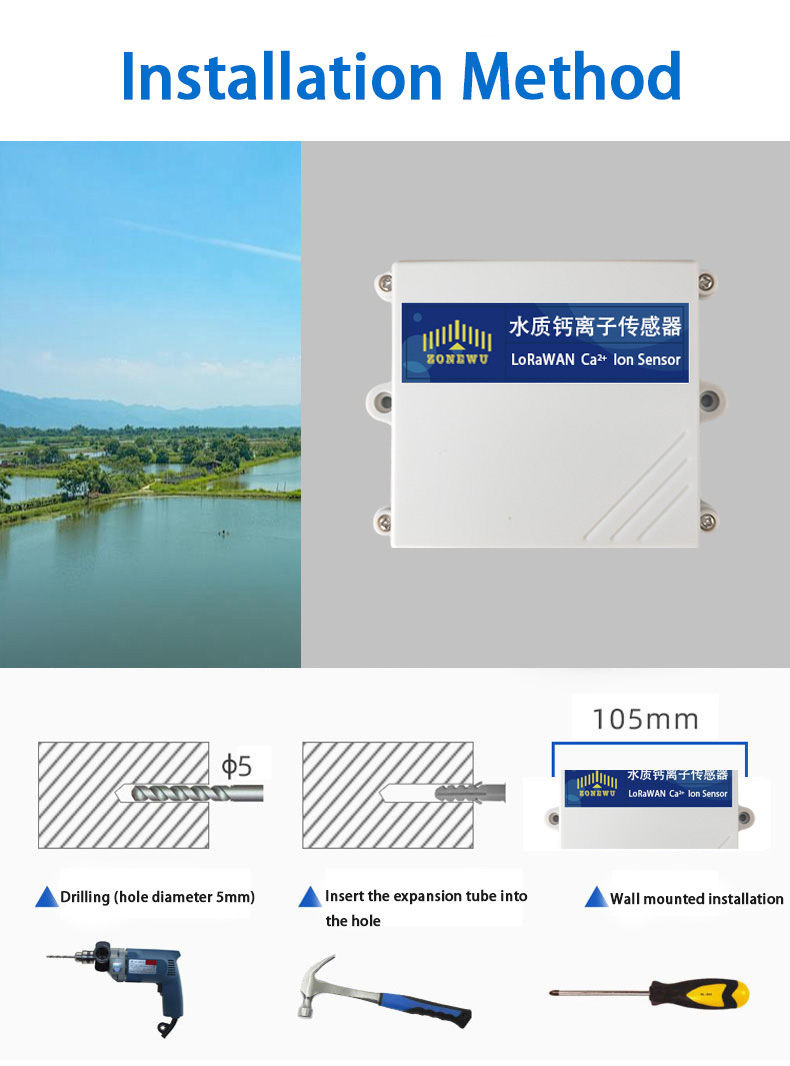

Ca2+ Ion Transmitter Size and Installation
1.Submerged installation: The lead wire of the equipment is passed through
the waterproof pipe, and the 3/4 thread on the top of the equipment is connected
with the 3/4 thread of the waterproof pipe with raw material tape.Make sure that
the top of the equipment and the equipment lines are free of water.
2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.
Detailed Images
Common knowledge of Ca2+ Ion
How can we extend electrode life
After using the sensor, please rinse the gearbox head with clean water, cover it with a protective cover, and dry it to prolong the life of the electrode.
What kind of environment can't you use?
Can't be used in water containing organic solvents. Because there are too many interfering ions in seawater and their concentrations are high, it is not recommended to use this device in seawater.
How to preserve your device
Equipment that is not used for a long time should be kept dry, and equipment for short storage should be maintained in a standard diluted solution of each ion.
Application Scenarios

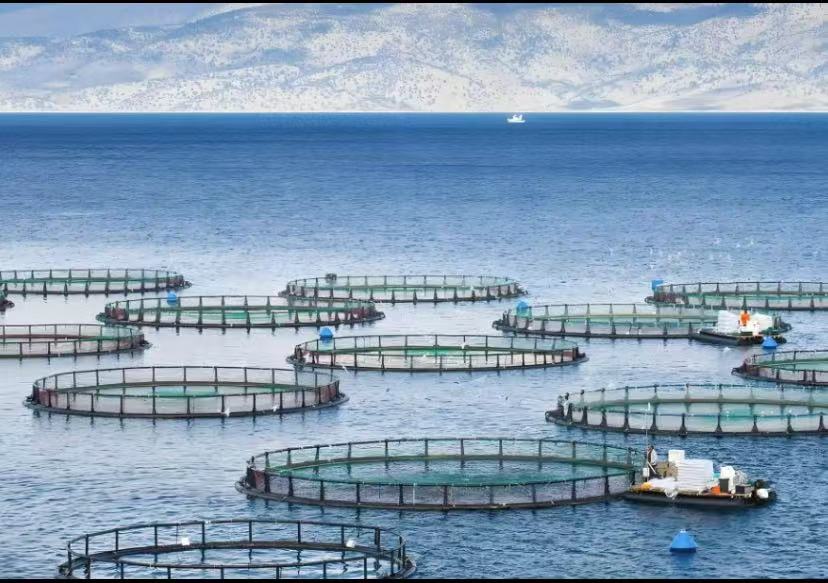

Aquaculture
Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.
Seawater Monitoring
Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

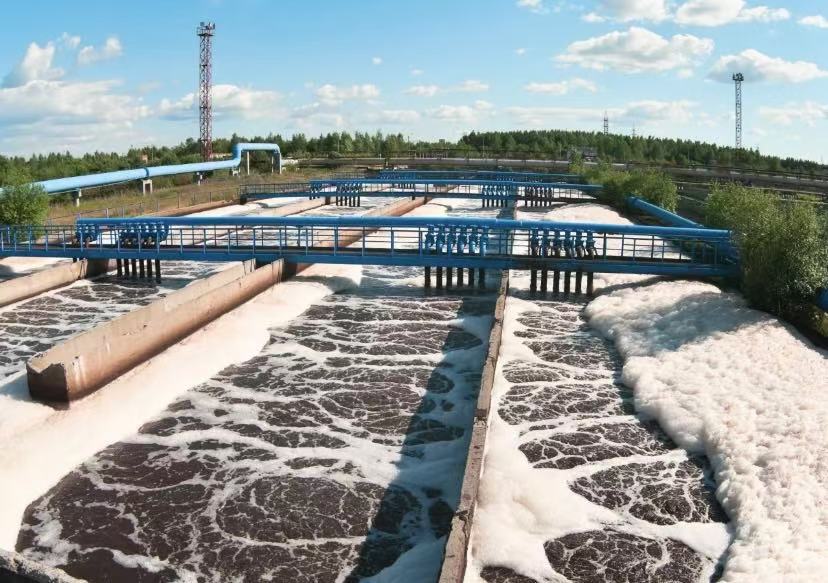

Industrial Wastewater
Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
