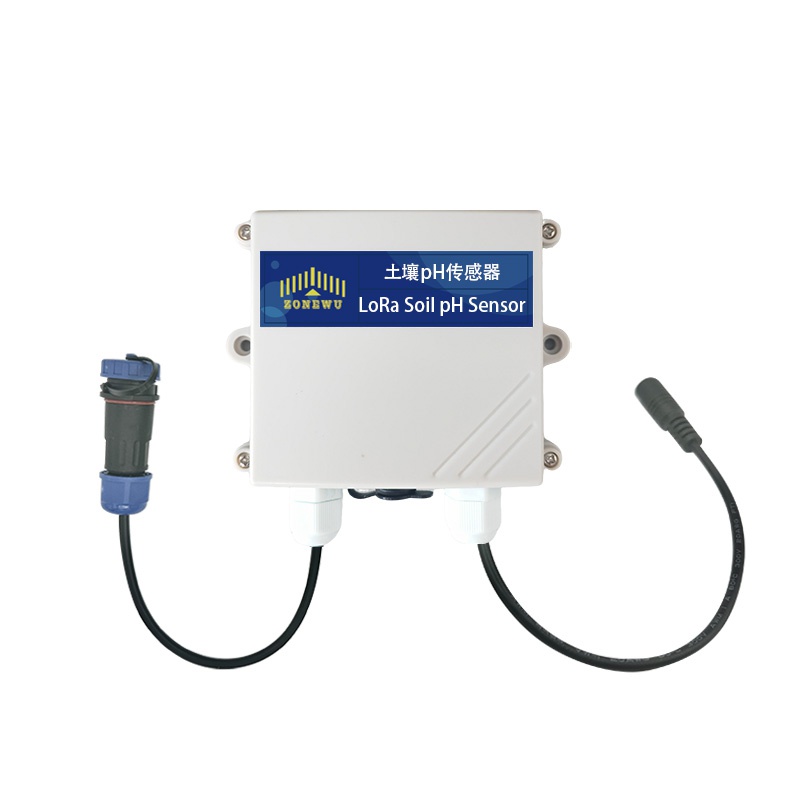

xiamen ZoneWu LoRa soil pH sensor is a wireless IoT sensor developed based on LoRa technology, Utilizing electrochemical principles for measurement, it has the characteristics of precise measurement, rapid response, and stable output, which can meet the detection needs of various soil types, and supports the standard LoRaWAN protocol to complete remote wireless data interaction.
Product Model :
LW502-PHPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gHot-sale Digital LoRaWAN Wireless Soil PH Value Sensor
xiamen ZoneWu LoRa soil pH sensor is a wireless Internet of Things device that integrates collection, monitoring, and transmission functions. Its measurement is precise, response is fast, and output is stable, suitable for all kinds of soil scenarios. The sensor can be buried in the soil for a long time, has the characteristics of anti-electrolysis and anti-corrosion, adopts vacuum sealing design, and has excellent waterproof performance. Based on LoRa technology, wireless remote low-power communication is achieved through aviation connectors and LoRaWAN collectors. It is widely used in precision agriculture, forestry, geological exploration, plant cultivation, water conservancy and environmental protection and other fields, and can effectively detect the acidity and alkalinity of the soil.
Technical Parameters
|
Power Supply |
ER26500 Li-SOCl2 8500 mAh battery,3.6V |
|
Weight |
200g |
|
Operating Emperature |
-20℃~+60℃ |
|
Soil pH Parameters |
Range: 3-9 pH |
|
Resolution: 0.1 |
|
|
Long Term Stability |
≤ 5%/year |
|
Probe Material |
Anti corrosion special electrode |
|
Transmitter Line length |
Default 2m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A |
|
Reporting cycle |
60min(Default ) |
|
Battery Life |
≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of Soil PH Sensor, it is not recommended touse short cycle data reports. |
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Characteristics of soil pH sensor:
1. Wide measurement range: capable of measuring soil pH values within the range of 0-14pH, suitable for various soil types.
2. High precision: The sensor accuracy reaches ± 0.1pH, ensuring the reliability of the measurement results.
3. High resolution: The resolution reaches 0.01pH, providing more precise measurement data.
4. Flexible power supply mode: Supports DC 12V-24V power supply mode to adapt to various voltage environments.
5. High integration: reduces device complexity and is easy to install and use.
6. Low power consumption: beneficial for energy conservation.
Detailed Images
Why Choose ZONEWU
xiamen ZoneWu LoRa soil pH sensor is a wireless IoT sensor developed based on LoRa technology, Utilizing electrochemical principles for measurement, it has the characteristics of precise measurement, rapid response, and stable output, which can meet the detection needs of various soil types, and supports the standard LoRaWAN protocol to complete remote wireless data interaction.
Details
xiamen ZoneWu Wireless LoRa Soil Electrical Conductivity Sensor is an integrated wireless IoT sensor with high sensitivity and stable performance. It is based on the measurement principle of soil dielectric constant, can intuitively and stably reflect the real water content of various types of soil, can accurately measure the volume percentage of soil moisture, and adopts the soil moisture measurement method in line with the current international standards. The sensor supports the standard LoRaWAN protocol, enabling wireless remote data communication.
Details
xiamen ZoneWu LoRa Soil Nitrogen, Phosphorus, and Potassium (NPK) Sensor is an innovative wireless sensing device, which has the functions of collection, monitoring and transmission, and can real-time accurately monitor the content of nitrogen, phosphorus and potassium in the soil, with high measurement accuracy. The LoRWAN collector is connected to the sensor via an aviation connector, and the connection operation is quick and convenient. It follows the standard LoRaWAN protocol, enabling long-distance data transmission.
