xiamen ZoneWu Wireless LoRa Soil Electrical Conductivity Sensor is an integrated wireless IoT sensor with high sensitivity and stable performance. It is based on the measurement principle of soil dielectric constant, can intuitively and stably reflect the real water content of various types of soil, can accurately measure the volume percentage of soil moisture, and adopts the soil moisture measurement method in line with the current international standards. The sensor supports the standard LoRaWAN protocol, enabling wireless remote data communication.
Product Model :
LW501-ECPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gWireless LoRa Soil Electrical Conductivity Sensor

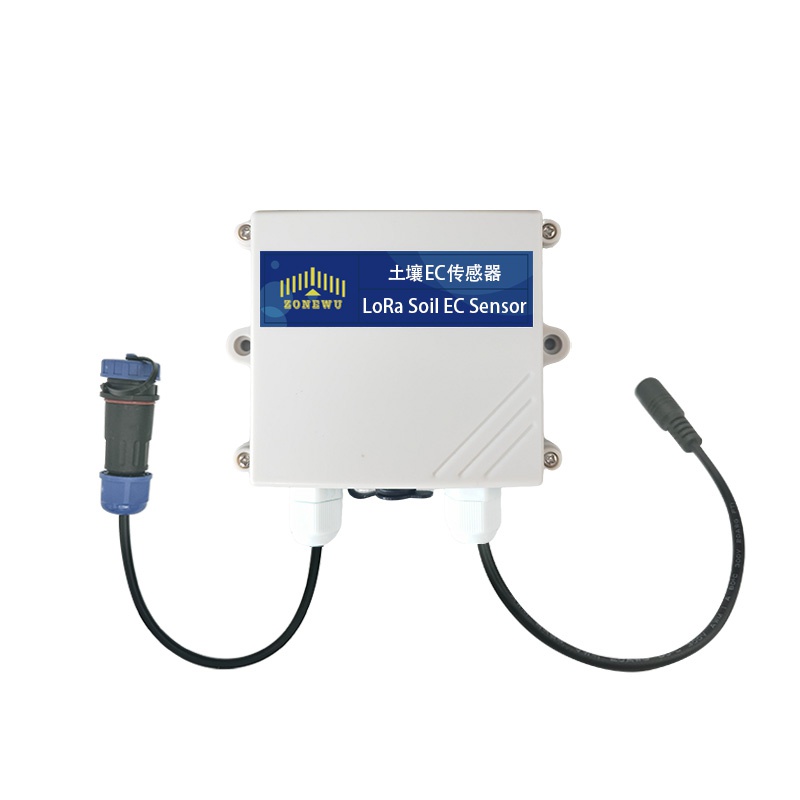

xiamen ZoneWu LoRa Soil EC Sensor is a wireless Internet of Things sensor that integrates data collection, monitoring, and transmission functions. It can accurately measure soil conductivity, temperature and humidity parameters, and connect to the LoRaWAN collector through an aviation connector, relying on LoRa technology to realize wireless remote low-power data transmission, and can quickly synchronize data to the central system. In the field of agriculture, the sensor helps users accurately manage irrigation and fertilization, avoiding resource waste; At the same time, it is widely used in gardening and environmental monitoring scenarios to ensure the optimal soil conditions required for plant growth and ecological balance.
Technical Parameters
|
Power Supply |
ER26500 Li-SOCl2 8500 mAh battery,3.6V |
|
Weight |
200g |
|
Operating Emperature |
-40℃~+60℃ |
|
Soil EC Parameters
|
Range: 0-20000μS/cm |
|
Resolution: 10μS/cm |
|
|
Accuracy: ± 3% FS within the range of 0-10000 μ S/cm; ± 5% FS within the range of 10000-20000 μ S/cm, @ (brown soil, 60%, 25 ℃) |
|
|
Soil Moisture Parameters
|
Range:0-100% |
|
Resolution: 0.1% |
|
|
Accuracy: 0-50% ± 2%, @ (brown soil, 30%, 25 ℃); 50-100% ± 3%, @ (brown soil, 60%, 25 ℃) |
|
|
Soil Temperature Parameters
|
Range:-40~+80℃ |
|
Resolution: 0.1℃ |
|
|
Accuracy:±0.5℃（25℃） |
|
|
Conductivity Temperature Compensation |
Built in temperature compensation sensor, compensation range 0-50 ℃ |
|
Probe Material |
Anti corrosion special electrode |
|
Transmitter Line length |
Default 2m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A |
|
Reporting cycle |
60min(Default ) |
|
Battery Life |
≤3 years （Depending on the reporting cycle） Note: Due to the high power consumption of Soil EC Sensor, it is not recommended touse short cycle data reports. |
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Technical characteristics of soil conductivity sensor
1. High precision: Soil conductivity sensors have high-precision measurement capabilities and can accurately reflect changes in soil conductivity. 2. Quick response: Sensors can quickly respond to changes in soil conductivity and provide real-time data updates.
3. Sealed and durable: Sensors usually have good sealing properties, can be directly buried in soil for use, are not affected by corrosion, and are suitable for long-term monitoring.
4. Real time monitoring: With real-time monitoring function, it can measure the conductivity of soil at different depths and provide comprehensive soil information.
5. Strong anti-interference ability: The equipment adopts electrical isolation design, which can resist complex interference situations on site and ensure accurate and reliable measurement data.
