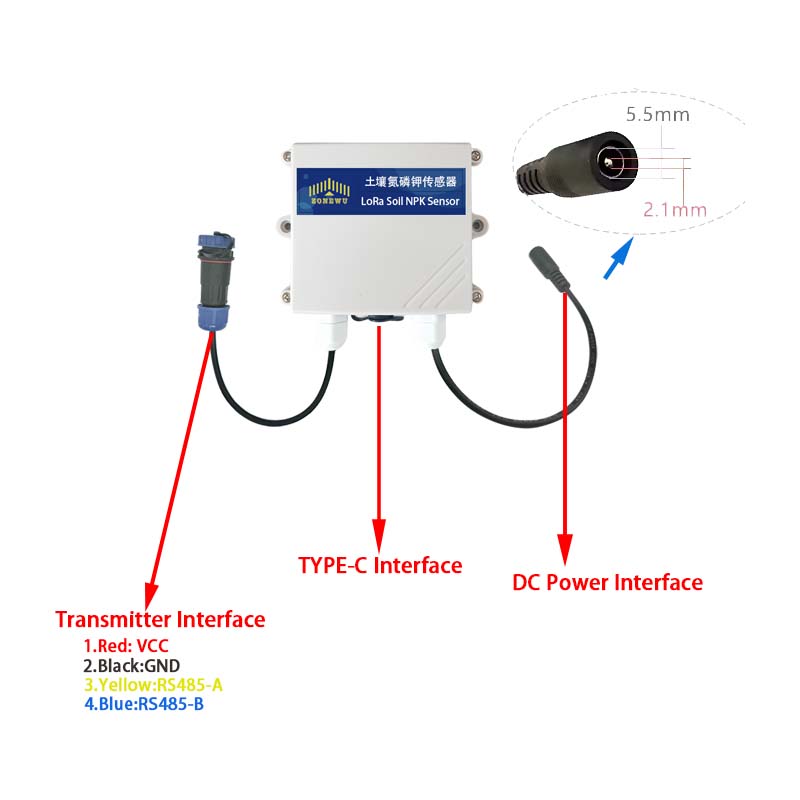

xiamen ZoneWu LoRa Soil Nitrogen, Phosphorus, and Potassium (NPK) Sensor is an innovative wireless sensing device, which has the functions of collection, monitoring and transmission, and can real-time accurately monitor the content of nitrogen, phosphorus and potassium in the soil, with high measurement accuracy. The LoRWAN collector is connected to the sensor via an aviation connector, and the connection operation is quick and convenient. It follows the standard LoRaWAN protocol, enabling long-distance data transmission.
Product Model :
LW503-NPKPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gCustom New Wireless LoRa Soil NPK Sensor
xiamen ZoneWu LoRa soil nitrogen phosphorus potassium (NPK) sensor is an integrated wireless IoT sensing device for precision agriculture. It can go deep into the soil layer and accurately detect the nitrogen, phosphorus and potassium nutrients in the soil in real time, effectively controlling the measurement deviation. With LoRa remote low-power communication technology, data can be transmitted stably even in remote farmland, and the battery life is long. Users can keep track of soil nutrient dynamics at any time, scientifically plan fertilization, reduce production costs, improve crop yield and quality, and promote the intelligent and efficient development of agriculture.
Technical Parameters
|
Power Supply |
5-28 VDC |
|
Weight |
150g |
|
Operating Emperature |
0℃~55℃ |
|
Measuring Range |
0-1999 mg/kg(mg/L) 0-2999 mg/kg(mg/L) |
|
Measurement Error |
≤5% |
|
Resolution Ratio |
1 mg/kg(mg/L) |
|
Sensor External Dimensions |
45*15*123mm |
|
Steel Needle Material |
Stainless Steel |
|
Sealing Material |
Black flame retardant epoxy resin |
|
Transmitter Line length |
Default 2m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class C |
|
Reporting cycle |
5min(Default ) |
|
Communication Protocol |
LoRaWAN |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Detailed Images
Why Choose ZONEWU
xiamen ZoneWu LoRa soil pH sensor is a wireless IoT sensor developed based on LoRa technology, Utilizing electrochemical principles for measurement, it has the characteristics of precise measurement, rapid response, and stable output, which can meet the detection needs of various soil types, and supports the standard LoRaWAN protocol to complete remote wireless data interaction.
Details

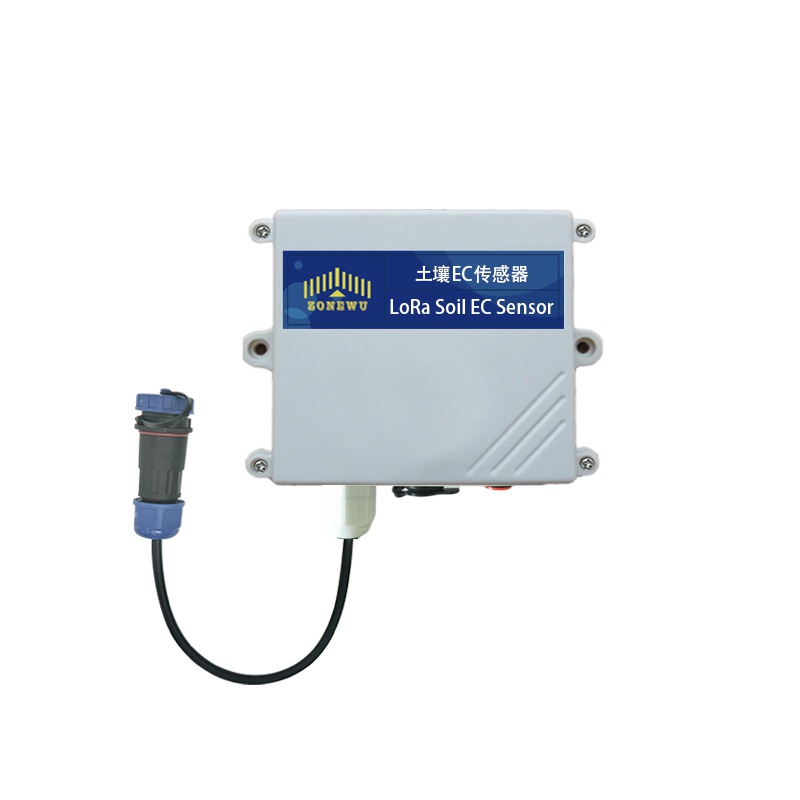

xiamen ZoneWu Wireless LoRa Soil Electrical Conductivity Sensor is an integrated wireless IoT sensor with high sensitivity and stable performance. It is based on the measurement principle of soil dielectric constant, can intuitively and stably reflect the real water content of various types of soil, can accurately measure the volume percentage of soil moisture, and adopts the soil moisture measurement method in line with the current international standards. The sensor supports the standard LoRaWAN protocol, enabling wireless remote data communication.
Details

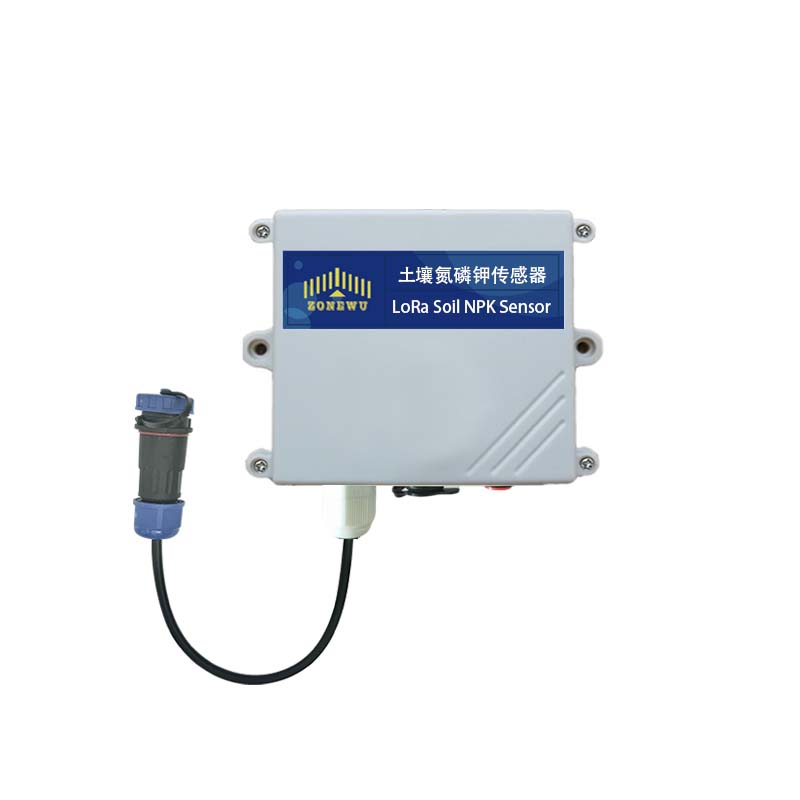

xiamen ZoneWu LoRa Soil Nitrogen, Phosphorus, and Potassium (NPK) Sensor is an innovative wireless sensing device, which has the functions of collection, monitoring and transmission, and can real-time accurately monitor the content of nitrogen, phosphorus and potassium in the soil, with high measurement accuracy. The LoRWAN collector is connected to the sensor via an aviation connector, and the connection operation is quick and convenient. It follows the standard LoRaWAN protocol, enabling long-distance data transmission.
