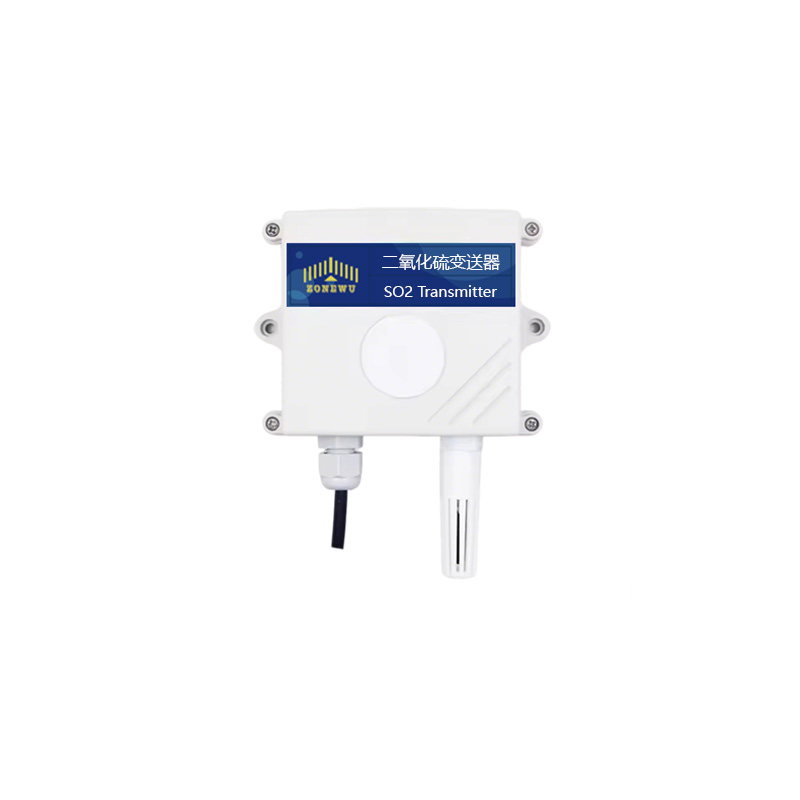

xiamen ZoneWu SO2 gas detector measures concentration using electrochemical principles. Can communicate through RS485 interface, support standard ModBus RTU protocol, wide voltage adaptation range, fast response is also very sensitive.
Product Model :
ZW-SO2-NO1Power Supply Mode :
10-30VDCWeight :
0.6kgInterface :
RS485Protocol :
ModBusRTUCustom Wireless Sulfur Dioxide Gas Detector
Xiamen ZoneWu SO2 gas detector, which uses electrochemical technology to measure the concentration of sulfur dioxin, is especially fast and very sensitive.
Xiamen ZoneWu LoRaWAN Gas Sensor SO2 Sensor Features:
It uses 485 communication, follows the standard ModBus RTU communication protocol, and can set the communication address and baud rate itself.
Communication distance is very long, reaching up to 2,000 meters.
The power supply voltage requirements do not pick, 10-30V wide voltage can be used.
The equipment enclosure protection is well done, and no matter how harsh the field environment, it can be carried normally.
Adopt electrochemical technique, measure SO2 density quickly and sensitively.
It is often used in air quality detection and other places that need to measure sulfur dioxide and temperature and humidity.
Product Parameters
| Power supply | 10~30V DC | Average power consumption | 0.18W |
| Temperature measurement range | -40℃~80℃ | Temperature accuracy | ±0.5℃(25℃) |
| Humidity measurement range | 0~100%RH | Humidity accuracy | ±3%RH (60%RH, 25℃) |
| SO2 measurement range | 0~20.00ppm（default） | SO2 Resolution | 20ppm: 0.1ppm 2000ppm: 1ppm |
| Operating temperature | -20℃~+50℃ | Working humidity | 15~90%RH without condensation |
| Repeatability | ≤2% | stability | ≤2% signal value/month |
| Detection accuracy | ±5%FS or ±10% | Output signal | RS485/Analog |
| Response time | 20ppm:≤45S, 2000ppm:≤70S | ||
Product Applications
Accurate detection: Using advanced electrochemical principles, the concentration of sulfur dioxide can be determined accurately, and the data error is extremely small.
Communication is convenient: it supports RS485 communication and the standard ModBus RTU protocol, making it easy to network with various devices and ensuring stable data transmission.
Flexible settings: The communication address and baud rate can be set independently, and it can be adapted to different application environments and system requirements.
Power supply: 10-30V wide voltage input, no need to worry about voltage fluctuations, can work normally under different power conditions.
Strong and durable: The high-protection shell is waterproof, dust and impact resistant, and is adapted to harsh scenarios such as high temperature, humidity, and dust.
Agile response: When monitoring, the response is rapid, and once the concentration of sulfur dioxide in the environment changes, the data can be quickly responded to and fed back.
Detailed Images
Common knowledge of SO2
What are the specific advantages of this product in terms of signal stability and measurement accuracy compared to other similar products
It adopts high-sensitivity gas detection probe imported from the United States, has mature technology, and uses high-performance signal acquisition circuit to accurately measure SO2 concentration, with stable signal and high accuracy.
What is the SO2 measurement range
The measurement range is 0-20.00ppm (default).
The RS485 communication settings and the maximum communication distance are mentioned, so how is its communication stability in practical complex environments

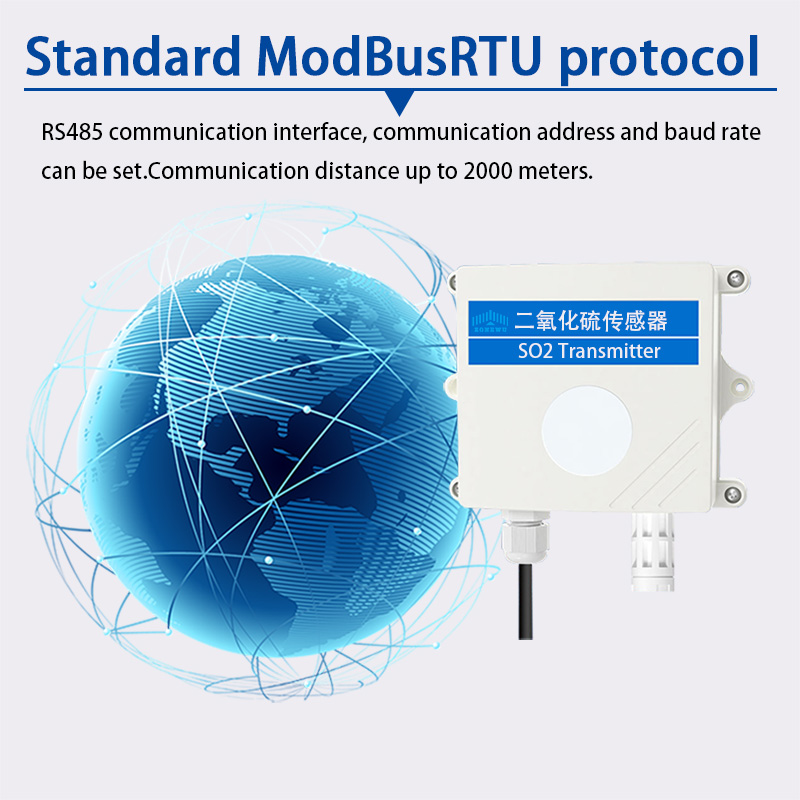

RS485 communication, standard ModBus-RTU communication protocol, communication address and baud rate can be set, the farthest communication distance is 2000 meters.

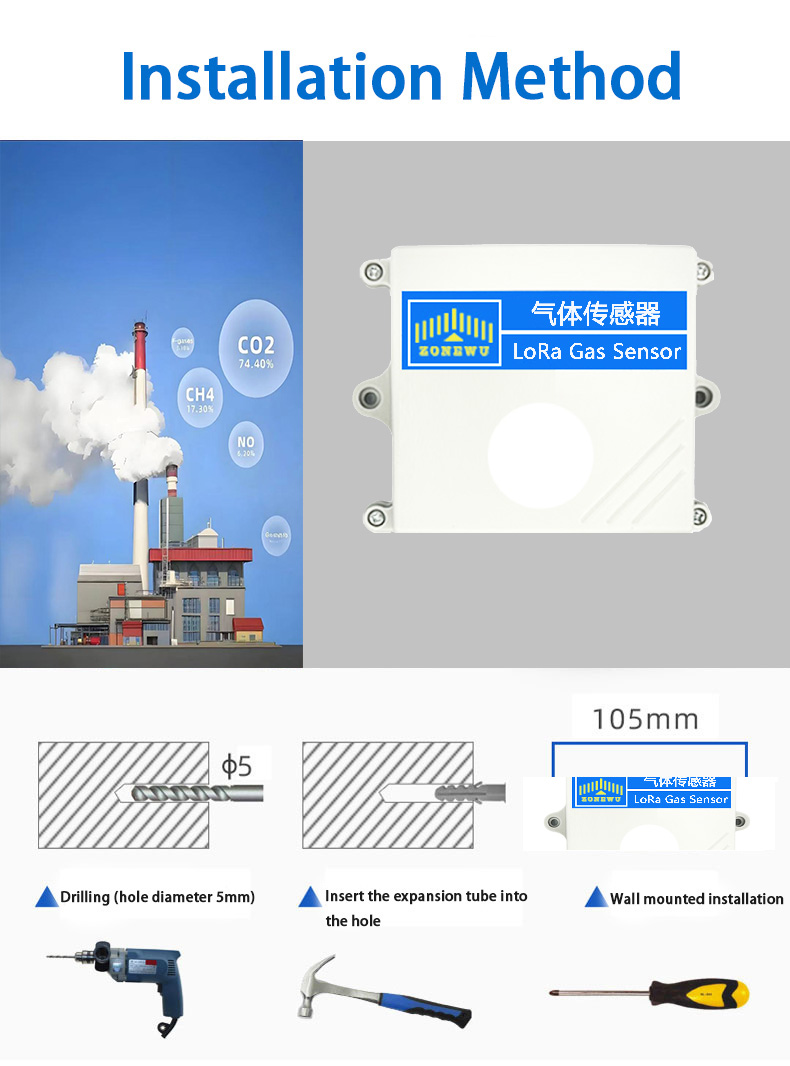

What method of installation does this product use
The product adopts a wall-mounted waterproof shell, which is easy to install and has a high degree of protection.
Application Scenarios
Industrial production
Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.
Environmental inspection
Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.
Safety protection
In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.
