High-accuracy Durable wireless LoRaWAN Oxygen (O2) sensor

High-accuracy Durable wireless LoRaWAN Oxygen (O2) sensor

xiamen ZONEWU The LoRaWAN Oxygen (O2) sensor is a wireless gas detection device using LoRa wireless technology. It contains a very powerful carbon monoxide detection device, and also comes with sensors that can measure temperature and humidity. With it, you can know at any time how high the carbon monoxide concentration is around you, as well as the temperature and humidity at that time. The data measured by this sensor is very accurate, it is not easy to fail, and it is especially energy-saving. It uses the standard LoRaWAN communication protocol, and the signal can transmit very far, even if it is far away, it can still send data.

  • Product Model :

    LW305-O2
  • Power Supply Mode :

    Battery or External DC
  • Frequency :

    CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
  • MAC Version :

    LoRaWAN 1.0.3
  • Mode :

    OTAA Class A/C
  • Weight :

    120g

High-accuracy Durable wireless LoRaWAN Oxygen (O2) sensoror



xiamen ZoneWu LoRaWAN Oxygen (O2) Sensor is a new type of wireless Internet of Things gas monitoring device, which has the functions of data collection, monitoring and transmission.



xiamen ZoneWu LoRaWAN Gas Sensor O2 Sensor Features:



It can monitor the oxygen concentration in the environment in real time, as well as measure temperature and humidity, and collect these data.



A three-electrode electrochemical gas sensor was used to measure oxygen specifically, with a high-performance microprocessor to process the data, and a temperature and humidity sensor was also built-in.



Performance advantages:



  • High sensitivity and resolution, accurate measurement data;



  • It is small in size and does not take up space, consumes less power, and is energy-efficient;



  • Strong stability, not easily affected by external interference.



It supports the LoRaWAN protocol and can transmit data wirelessly over a long distance.



It can be used in industrial production, agriculture, underground pipelines, and other places where oxygen needs to be monitored.



The collection, monitoring, and transmission functions are integrated together, and the remote monitoring is realized by wireless technology, which is suitable for various scenarios.



Technical Parameters

Power Supply 5~28VDC
Weight 120g
Operating Temperature -20℃~50℃
Measuring Principle Electrochemistry
Lifespan <2 years
Measuring Range
02 (0-25) %VOL
Temp:-40~+80 ℃
Humi:0~99.9 %RH
Frequency Frequency
Mode OTAA Class A/C(Default: Class C)
Reporting cycle
External power supply:5min(Default reporting cycle)
Report after preheating for 3 minutes when powered on
Communication Protocol LoRaWAN,LoRa TDMA Networking
Equipment information
(Reference)
LoRaWAN,LoRa TDMA Networking
AppEUI:0000000000000001
DevEUI:aaaa202404150001
AppKey:00001111222233334444555566667777
MAC Version:LoRaWAN 1.0.3



Product Applications

1. Accurate measurement data: the sensor surface has a layer of particularly sensitive film, which can immediately sense oxygen changes as soon as it is touched. The microprocessor inside will analyze the data in detail and give accurate values in real time with minimal error.

2. Low power consumption: Using advanced low-power technology, the sensor can work for a long time without consuming electricity, which not only extends the use time but also saves maintenance costs.

3. Durable and stable: the material and process are very meticulous, even if the environmental temperature and humidity are extremely extreme, the performance will not change, and the measured data will always be accurate.

4. Fast response: Sensitive to changes in oxygen concentration, can respond quickly, suitable for places that need real-time monitoring.

5. Can transmit data wirelessly: supports LoRa wireless transmission, can report data over a long distance.

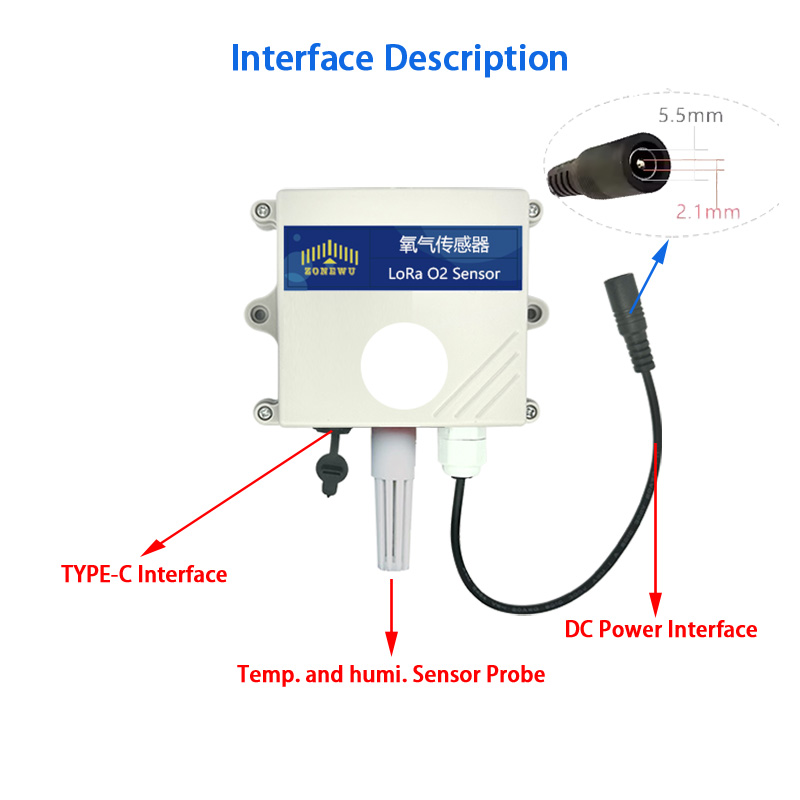

Detailed Images

Common knowledge of  O2

What is the use of oxygen sensor

It is used for real-time monitoring of oxygen concentration in the environment, ensuring production safety (such as preventing hypoxia or hyperoxia risks), and ensuring the normal operation of equipment (such as monitoring the combustion efficiency of engines).



What are the common types of oxygen sensors

There are mainly three types: electrochemical type (suitable for low concentration monitoring), zirconia type (suitable for high temperature environment), and paramagnetic type (commonly used in high precision industrial scenarios).



How to maintain the oxygen sensor

Regularly clean the sensor surface impurities, avoid contact with corrosive gases, calibrate the data according to the instructions, and replace the aging or failed sensor in a timely manner.



Application Scenarios

Industrial production

Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.



Environmental inspection

Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.

Safety protection

In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.



FAQ
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.



3.DO you offer free samples?



A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.





Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.
