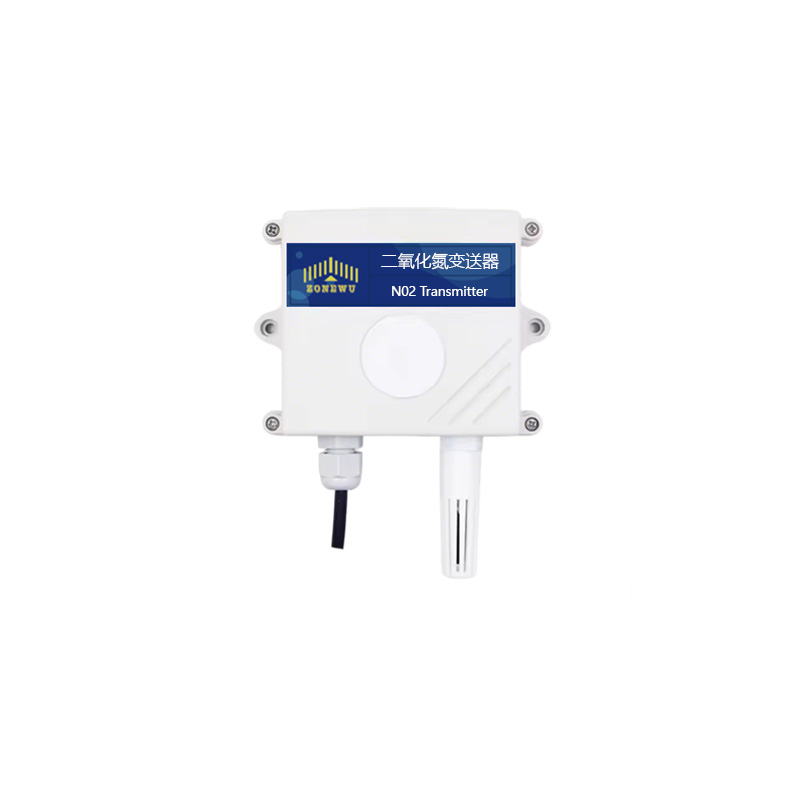

RS485 Nitrogen Dioxide(NO2) Transmitter

RS485 Nitrogen Dioxide(NO2) Transmitter

xiamen ZoneWu RS485 Nitrogen Dioxide(NO2) Transmitter, with RS485 interface, is a wired IoT sensor. Using the standard ModBus RTU protocol, can set their own address and baud rate. The 10 to 30 volt DC voltage can be used, and the interference resistance is strong, and it is suitable for environmental monitoring and industrial scenarios.
  • Product Model :

    ZW-NO2
  • Power Supply Mode :

    10-30VDC
  • Weight :

    0.6kg
  • Interface :

    RS485
  • Protocol :

    ModBusRTU

RS485 Nitrogen Dioxide(NO2) Transmitter



xiamen ZoneWu RS485 nitrogen dioxide(NO2) transmitter uses an imported large-brand electrochemical nitrogen dioxide sensor.

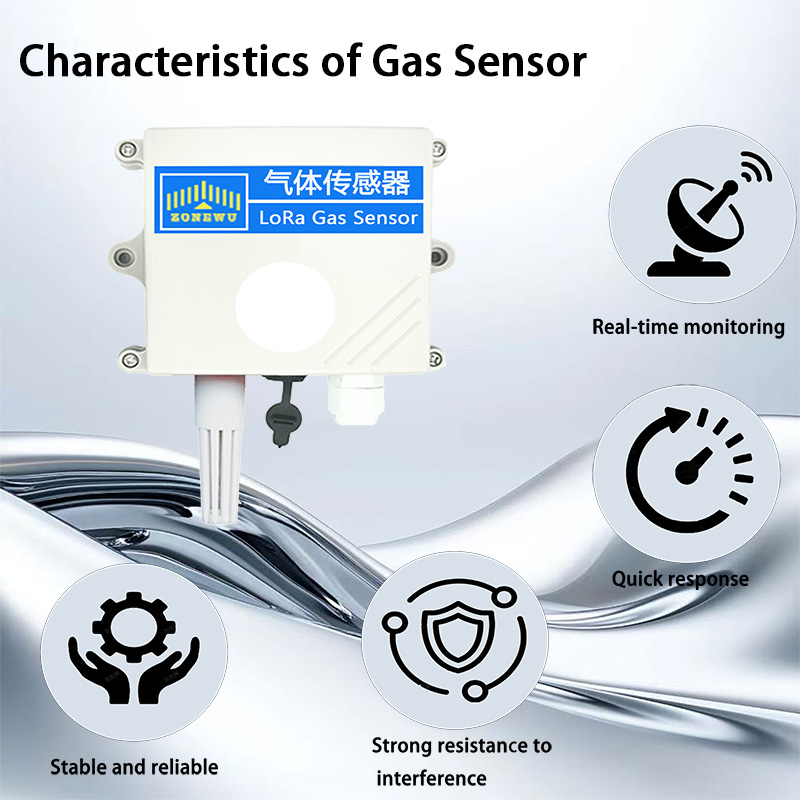

xiamen ZoneWu LoRaWAN Gas Sensor NO2 Sensor Features:



The reaction speed is especially fast, encountering changes in nitrogen dioxide concentration can react immediately, and is not afraid of external interference, and the stability is strong.



 After our company's special compensation algorithm and gas calibration, the measured data is accurate and stable.



 It is important to monitor nitrogen dioxide emissions in chemical production, power generation and automobile manufacturing plants.



The power supply voltage is not high, and a DC power supply of 10 to 30 volts can be used, making the supply convenient.



There are two output modes, RS485 and LoRa, which can be selected according to different needs.



The use of high-quality sensor elements ensures the overall performance of the equipment.



Product Parameters

Power supply 10-30VDC Measure range 0-20ppm(Customized)
Power consumption 0.18W Resolution 0.01ppm
Temperature range -40~ 80℃ Humidity range 0-100%RH
Temp accuracy ±0.5℃(25℃) Humi accuracy ±3%RH (60%RH, 25℃)
Working temperature -20~50℃ Working humidity 15~90%RH without condensation
Response time 20ppm: ≤30S, 2000ppm: ≤60S Stability ≤2% signal value/month
Output signal RS485 Detection accuracy ±5%FS

Product Applications

It adopts high-sensitivity gas detection probe imported from the United States, has mature technology, and uses high-performance signal acquisition circuit to accurately measure PPM-level NO2 concentration, with stable signal and high accuracy.

The measurement range is 0-20.00ppm (default).

485 communication, standard ModBus-RTU communication protocol, communication address and baud rate can be set, the farthest communication distance is 2000 meters.

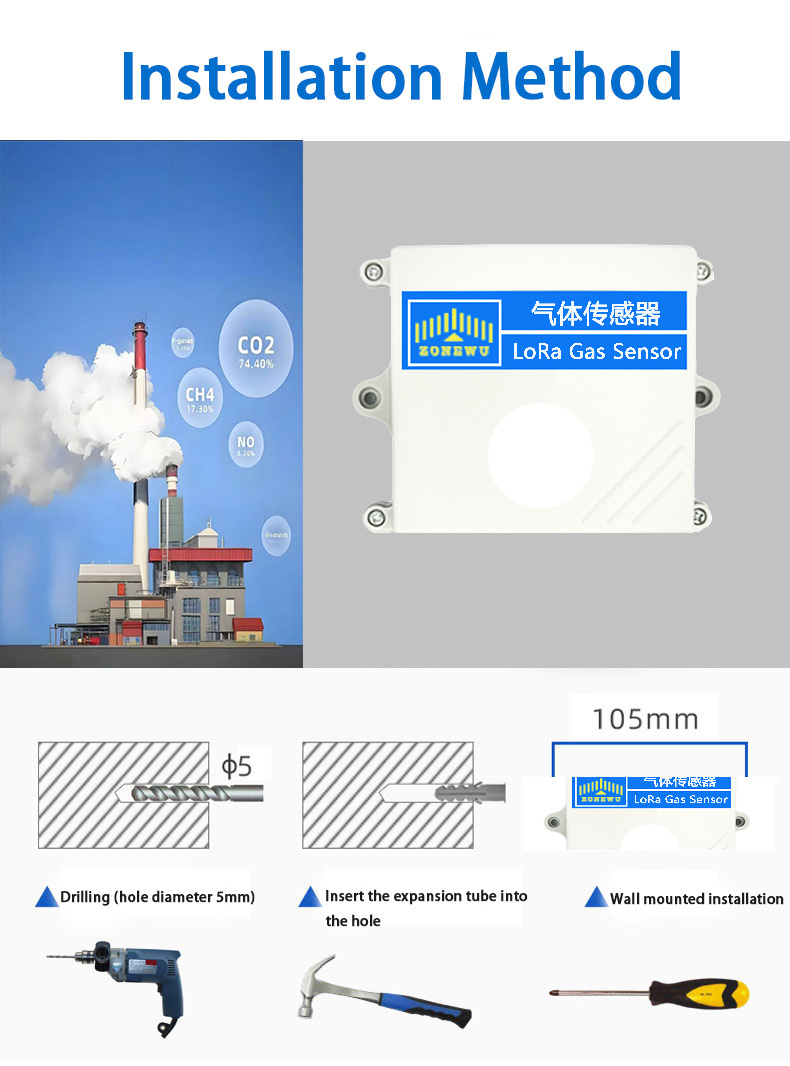

The product adopts a wall-mounted waterproof shell, which is easy to install and has a high degree of protection.

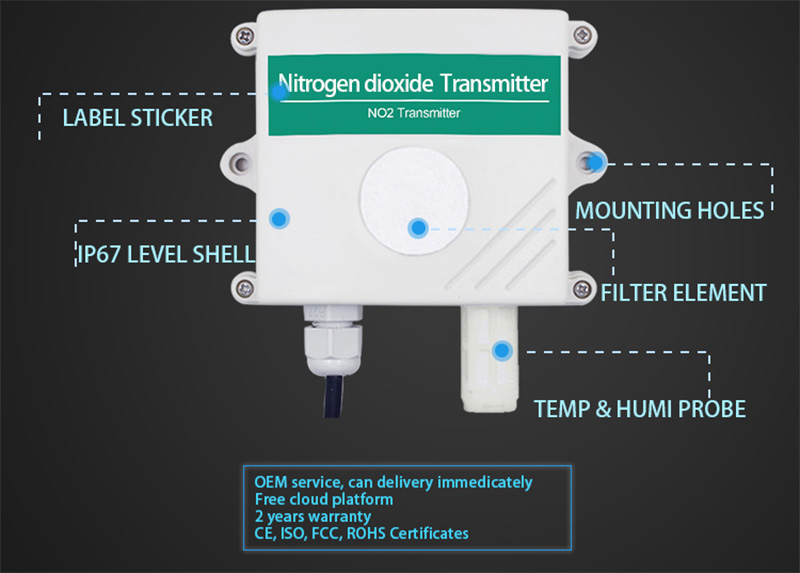

Detailed Images









Common knowledge of  NO2



Where is the nitrogen dioxide sensor generally used?

 It is often used in factories such as chemical production, power generation, and automobile manufacturing to monitor nitrogen dioxide emissions in these places.



How does it ensure accurate and stable measurement?

Through the unique compensation algorithm and gas calibration, the measurement data can be accurate and stable.



What are the requirements for its power supply?

Support 10-30V DC wide voltage input, the power supply requirements are not harsh.



What are the ways of outputting data?

There are RS485 and LoRa output modes to facilitate data transmission on demand.



Application Scenarios

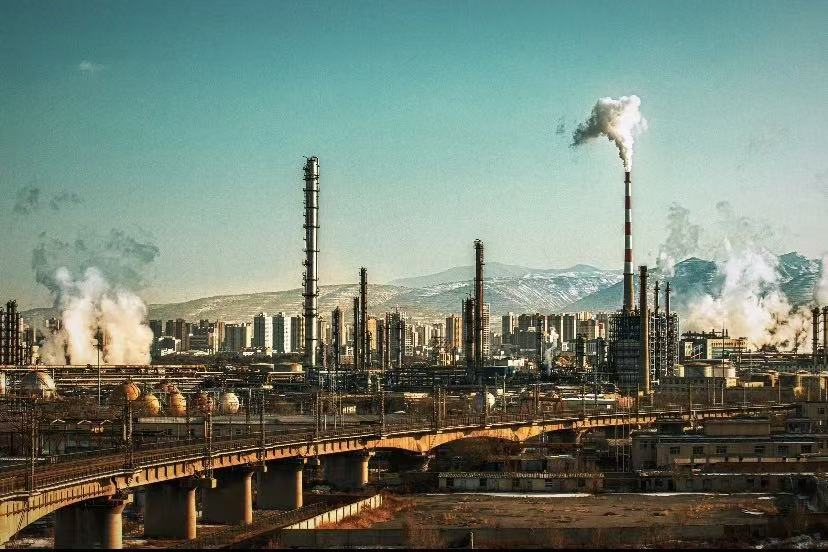

Industrial production

Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.



Environmental inspection

Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.

Safety protection

In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.



FAQ
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.



3.DO you offer free samples?



A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.



Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.
