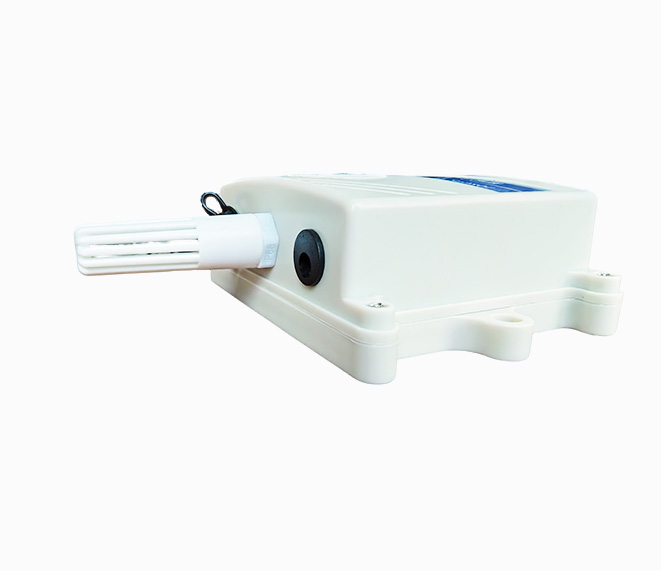

xiamen ZONEWU This LoRaWAN Ozone (O3) Sensor The LoRaWAN ozone sensor is an all-in-one wireless monitoring tool that combines detection, monitoring, and data transmission. It is based on a three-electrode electrochemical sensor and a high-performance chip, specifically designed to measure the ozone concentration in the environment, and can also measure temperature and humidity. This sensor is small in size, does not occupy space, is super energy-saving, is sensitive to changes in ozone and has precise measurement, stable performance, and even if there is some interference around it, it will not affect its normal operation.
Product Model :
LW309-O3Power Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
120gEnvironmental LoRaWAN Ozone (O3) Sensor
xiamen ZoneWu The LoRaWAN Ozone (O3) Sensor is developed using LoRa wireless technology as a wireless gas monitoring device.
xiamen ZoneWu LoRaWAN Gas Sensor O3 Sensor Features:
Real-time monitoring of ozone concentration, temperature and humidity in the environment, data synchronously updated.
Built-in high-performance ozone sensor and temperature and humidity sensor, paired with LoRa wireless module.

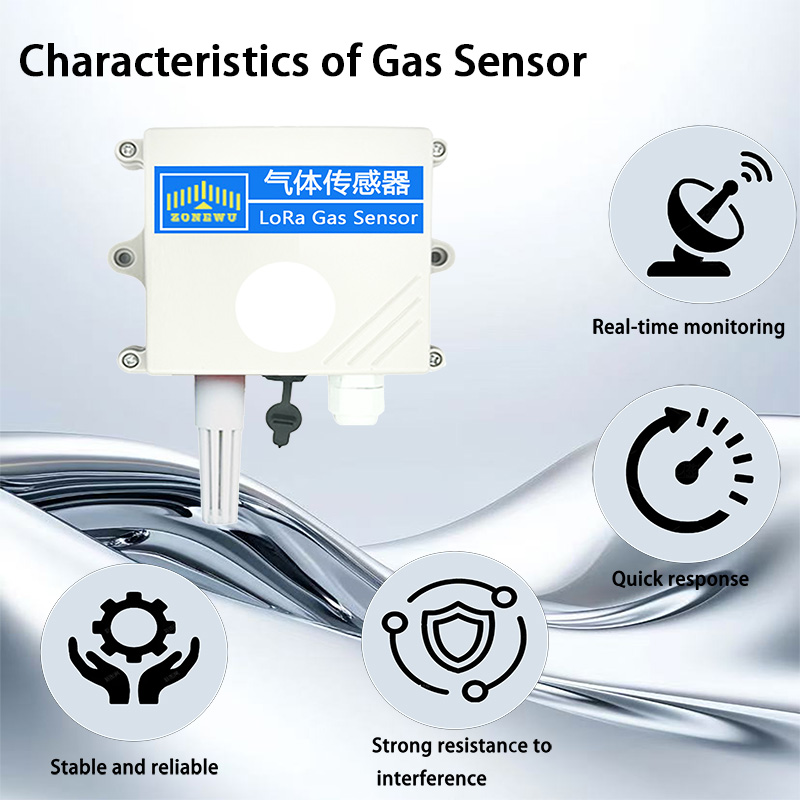

Performance advantages:
It supports the standard LoRaWAN protocol, has a long wireless transmission distance, does not require wiring, and has flexible deployment.
It is small in size, easy to install, and does not take up space.
Environmental monitoring (such as air quality), industrial production (such as waste gas treatment), health care, laboratories, air conditioning systems and other places that need to monitor ozone and temperature and humidity.
Technical Parameters
| Power Supply | 5~28VDC |
| Weight | 120g |
| Operating Temperature | -20℃～50℃ |
| Measuring Principle | Electrochemistry |
| Lifespan | <2 years |
| Measuring Range |
03 :(0-25) %VOL
Temp:-40~+80 ℃
Humi:0~99.9 %RH
|
| Frequency | Frequency |
| Mode | OTAA Class A/C(Default: Class C) |
| Reporting cycle |
External power supply:5min(Default reporting cycle)
Report after preheating for 3 minutes when powered on
|
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
|
Equipment information
(Reference)
|
LoRaWAN,LoRa TDMA Networking
AppEUI：0000000000000001
DevEUI：aaaa202404150001
AppKey：00001111222233334444555566667777
MAC Version：LoRaWAN 1.0.3
|
Product Applications
1. High precision measurement: the ozone sensor uses the principle of electrochemical detection, Just like the "electronic scale" measures weight, when ozone enters the sensor, an electrochemical reaction occurs, and the current produced is proportional to the ozone concentration. After circuit processing, the ozone content can be accurately calculated, and the data error is very small.
2. High sensitivity and fast response: the sensor has "sharp eyes and fast response". When the ozone concentration in the environment changes slightly, it can immediately detect it and quickly give a signal, ensuring real-time and accurate data, just like when you enter the door, the doorbell rings immediately.
3. High protection level: The sensor casing is made of high-density material, and there is also a waterproof gel coating inside. The anti-moisture effect is particularly good, just like wearing a "waterproof armor" on the sensor. There is also a waterproof and breathable membrane outside, which can block water but does not affect the entry of gas, so it can work stably even in harsh environments such as dampness and dust, and last longer.
4. Excellent stability: The sensor is "very stable," and the measurement results will not change over a long period of time. This is due to its precise measurement principle, reasonable circuit design, and durable materials, just like a high-quality clock that always keeps good time.

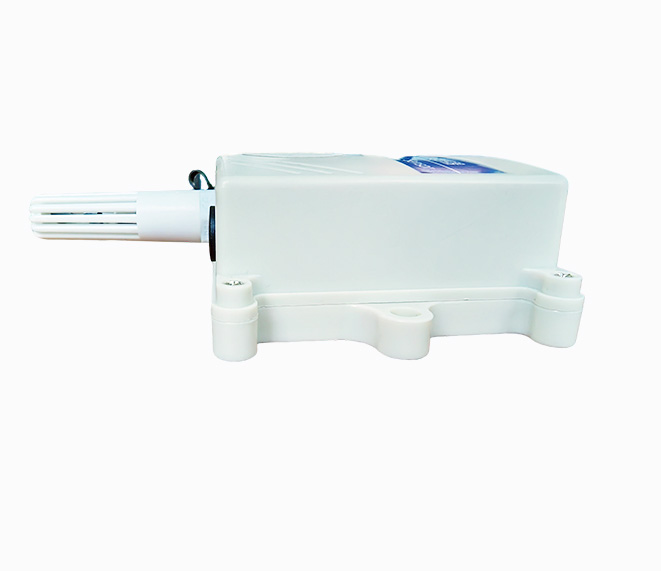

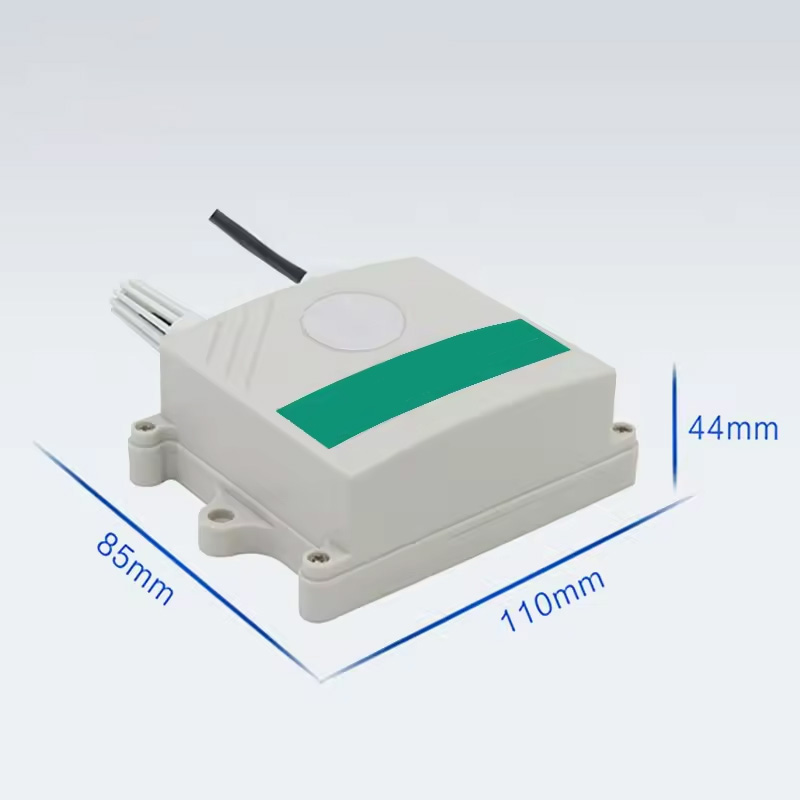

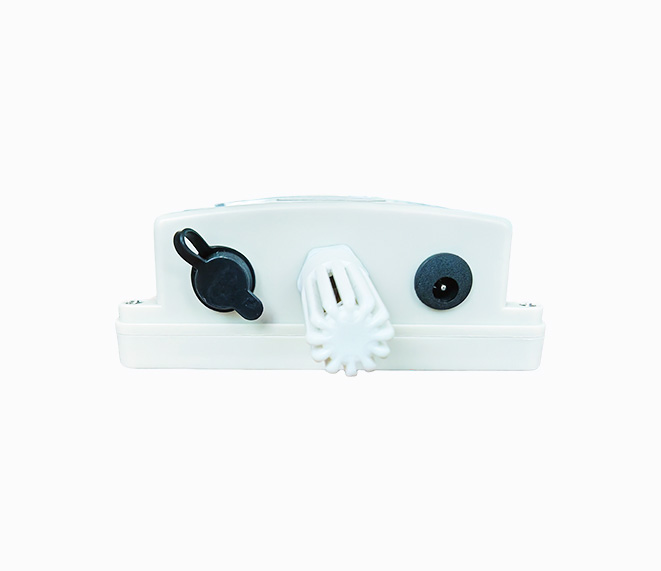

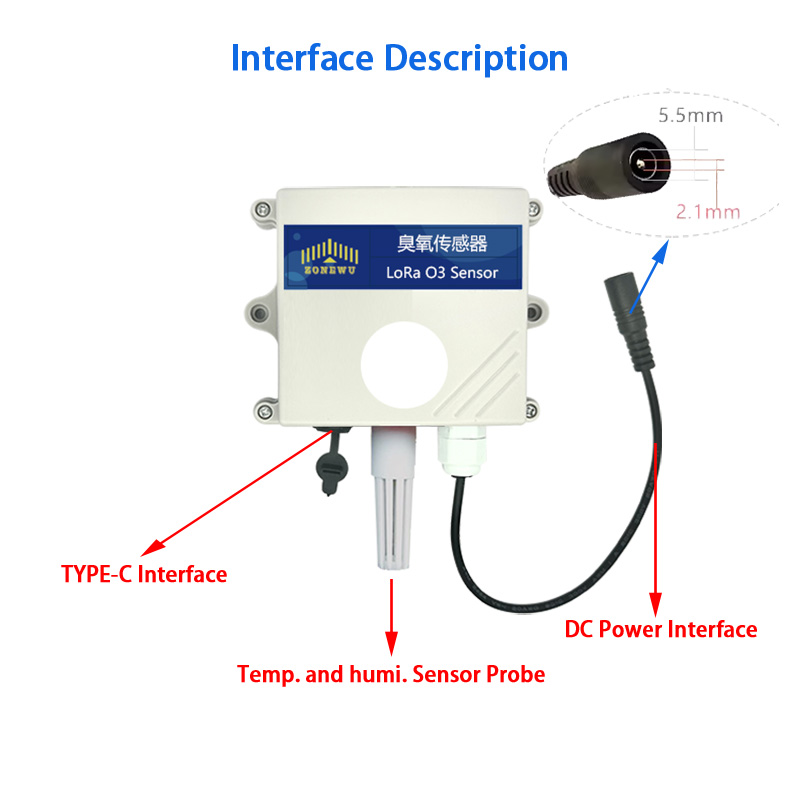

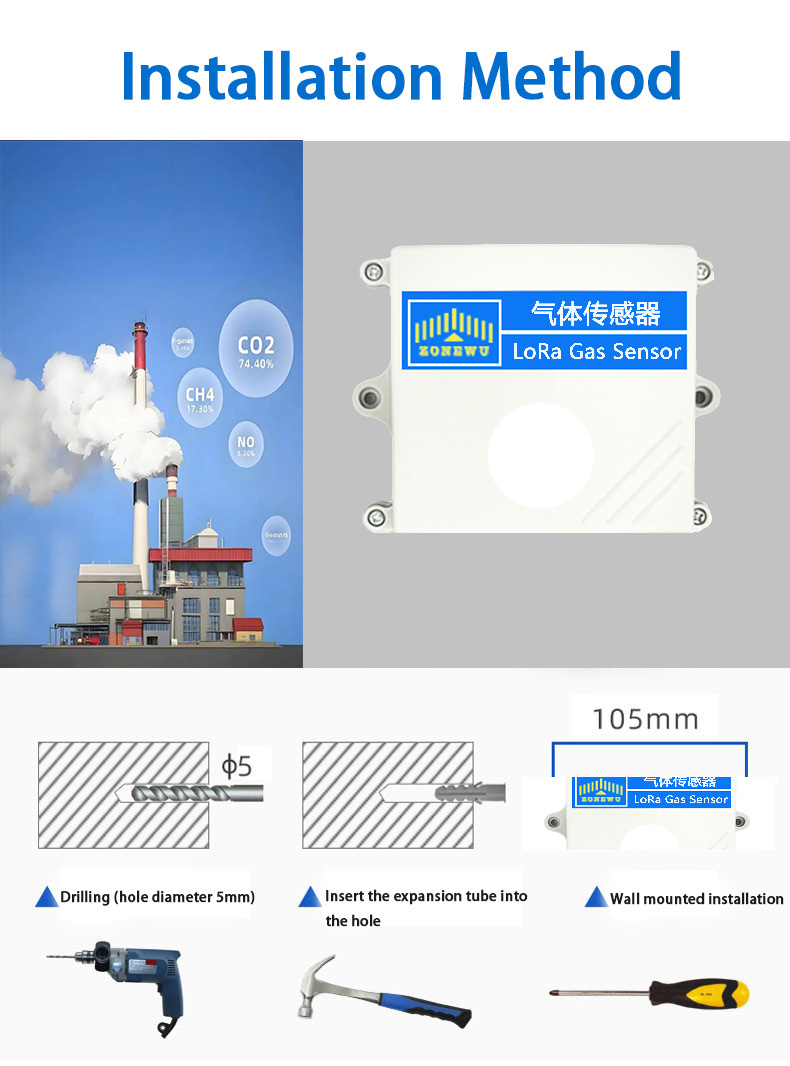

Detailed Images
Common knowledge of O3
What is ozone
Ozone (O₃) is a pale blue gas with a special pungent smell, composed of three oxygen atoms, unstable and prone to decomposition, and has strong oxidizing properties.
What is the role of ozone
What are the harms of ozone pollution
Application Scenarios
Industrial production
Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.
Environmental inspection
Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.
Safety protection
In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.
