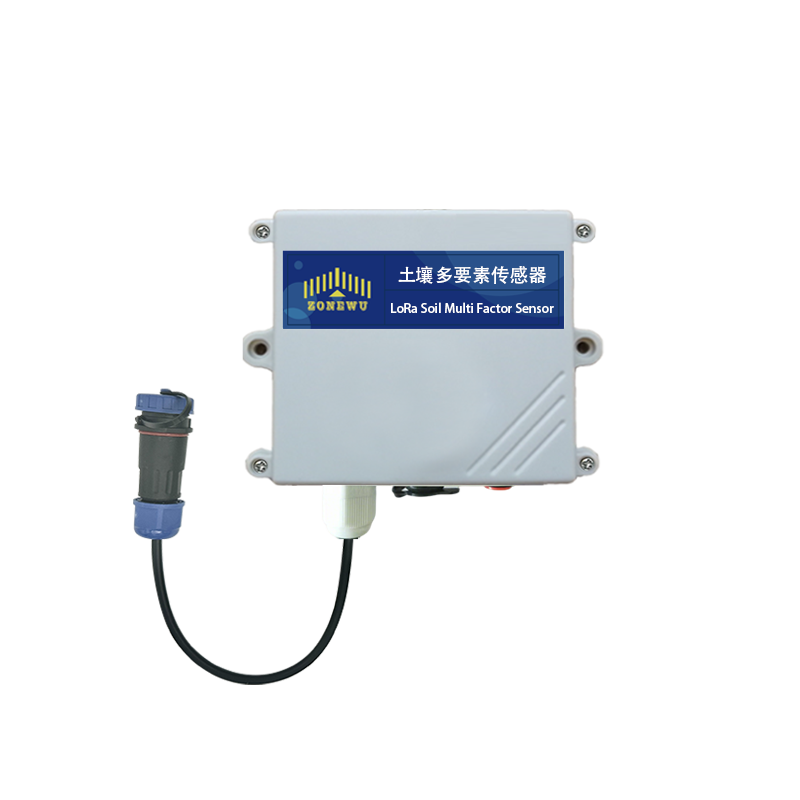

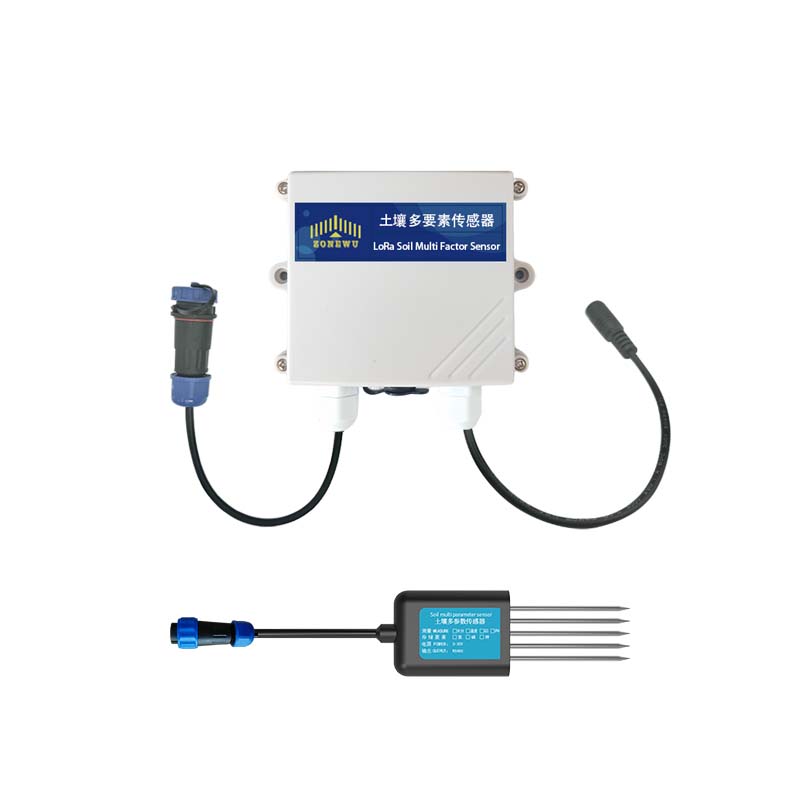

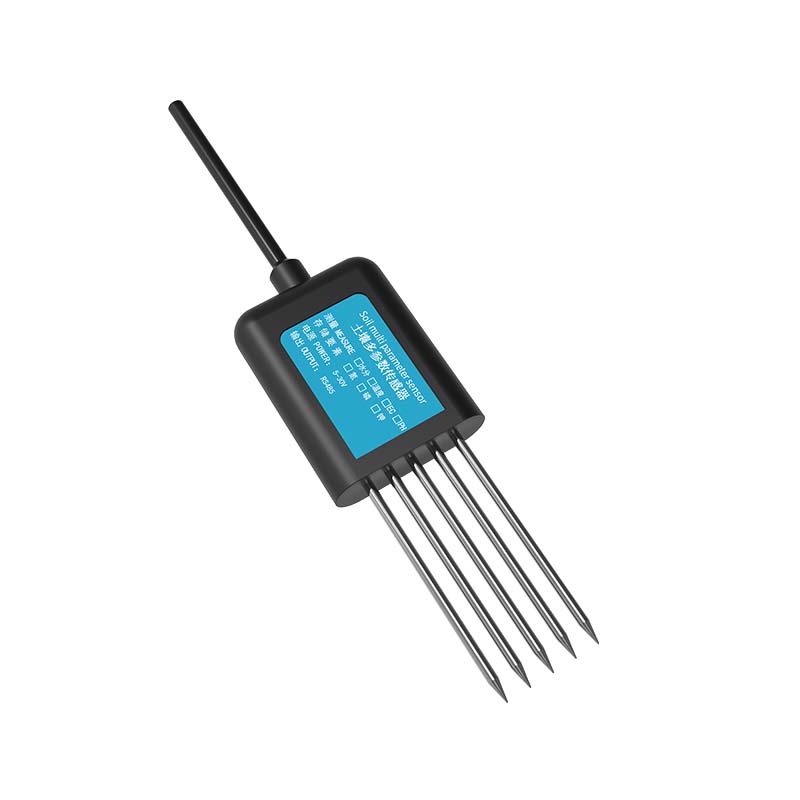

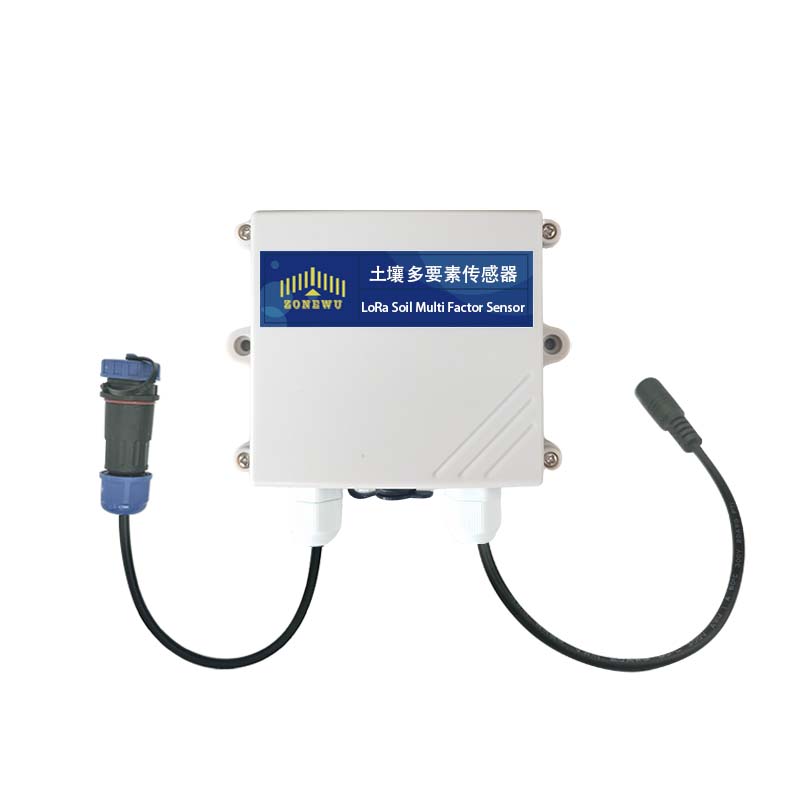

LoRaWAN soil multi-element seven in one sensor is a new wireless IoT sensor. It simultaneously measures seven key soil elements, such as nitrogen, phosphorus, potassium, pH value, moisture, temperature, and organic matter content. Based on LoRaWAN technology, transmit data wirelessly over long distances with low power consumption. This enables farmers to obtain comprehensive soil information in real-time, facilitating precise agricultural decision-making, improving crop growth conditions, and maximizing agricultural productivity.
Product Model :
LW504-MulPower Supply Mode :
Battery or External DCFrequency :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4MAC Version :
LoRaWAN 1.0.3Mode :
OTAA Class A/CWeight :
150gSoil Multi-element LoRaWAN Seven in One Sensor
LoRaWAN soil multi-element seven in one sensor, designed specifically for precision agriculture. It can penetrate deep into the soil and accurately detect soil temperature, humidity, conductivity in real time PH、 The nitrogen, phosphorus, and potassium content have the smallest measurement error. By adopting LoRaWAN long-distance low-power communication technology, stable data transmission can be achieved in remote farmland with low power consumption. Farmers can keep track of soil nutrient status at any time through supporting software, apply fertilizers reasonably, not only reduce costs, but also improve crop yield and quality, helping agriculture move towards intelligence and efficiency.
Technical Parameters
|
Power Supply |
5-28 VDC |
|
Weight |
150g |
|
Operating Emperature |
0℃~60℃ |
|
Measuring Range
|
Humidity：0%RH-100%RH 0-50% inner soil 2%, 50-100% inner soil 3%
(brown soil, 60%. 25 ° C) |
|
Temperature：-40°C~+80°C,±0.5℃(25°℃) |
|
|
EC: 0-20000us/cm Within the range of 0-10000 US/cm, it is ± 3%; Within the range of 10000-20000us/cm,
it is ± 5%. (Brown soil, 60% RH, 25 ° C) |
|
|
PH:3-9PH |
|
|
NPK: 0-1999 mg/kg(mg/L) 0-2999 mg/kg(mg/L) ≤5% |
|
|

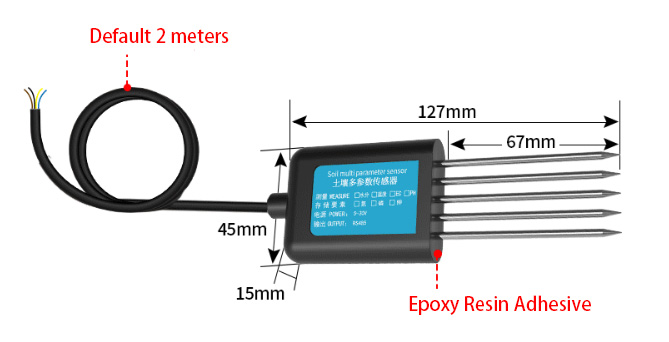

Sensor External Dimensions |
45*15*127mm |
|
Steel Needle Material |
Stainless Steel |
|
Sealing Material |
Black flame retardant epoxy resin |
|
Transmitter Line length |
Default 2m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class C |
|
Reporting cycle |
5min(Default ) |
|
Communication Protocol |
LoRaWAN |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Detailed Images
Why Choose ZONEWU
xiamen ZoneWu LoRa soil pH sensor is a wireless IoT sensor developed based on LoRa technology, Utilizing electrochemical principles for measurement, it has the characteristics of precise measurement, rapid response, and stable output, which can meet the detection needs of various soil types, and supports the standard LoRaWAN protocol to complete remote wireless data interaction.
Details
xiamen ZoneWu Wireless LoRa Soil Electrical Conductivity Sensor is an integrated wireless IoT sensor with high sensitivity and stable performance. It is based on the measurement principle of soil dielectric constant, can intuitively and stably reflect the real water content of various types of soil, can accurately measure the volume percentage of soil moisture, and adopts the soil moisture measurement method in line with the current international standards. The sensor supports the standard LoRaWAN protocol, enabling wireless remote data communication.
Details
xiamen ZoneWu LoRa Soil Nitrogen, Phosphorus, and Potassium (NPK) Sensor is an innovative wireless sensing device, which has the functions of collection, monitoring and transmission, and can real-time accurately monitor the content of nitrogen, phosphorus and potassium in the soil, with high measurement accuracy. The LoRWAN collector is connected to the sensor via an aviation connector, and the connection operation is quick and convenient. It follows the standard LoRaWAN protocol, enabling long-distance data transmission.
