Custom High-quality RS485 H2 Transmitter

Custom High-quality RS485 H2 Transmitter

Xiamen ZoneWu RS485 H2 Transmitter, with RS485 interface, belongs to the wired IoT sensor. Using the standard ModBus RTU protocol, can set their own address and baud rate. 10 to 30 volts DC voltage can provide normal power supply, strong anti-interference ability, can be used in both environmental monitoring and industrial scenarios.

  • Product Model :

    ZW-H2
  • Power Supply Mode :

    10-30VDC
  • Weight :

    0.6kg
  • Interface :

    RS485
  • Protocol :

    ModBusRTU

Custom High-quality RS485 H2 Transmitter



xiamen ZoneWu RS485 H2 Transmitter  is the imported electrochemical sensor, which can measure the hydrogen concentration range of 0 to 1000 ppm.

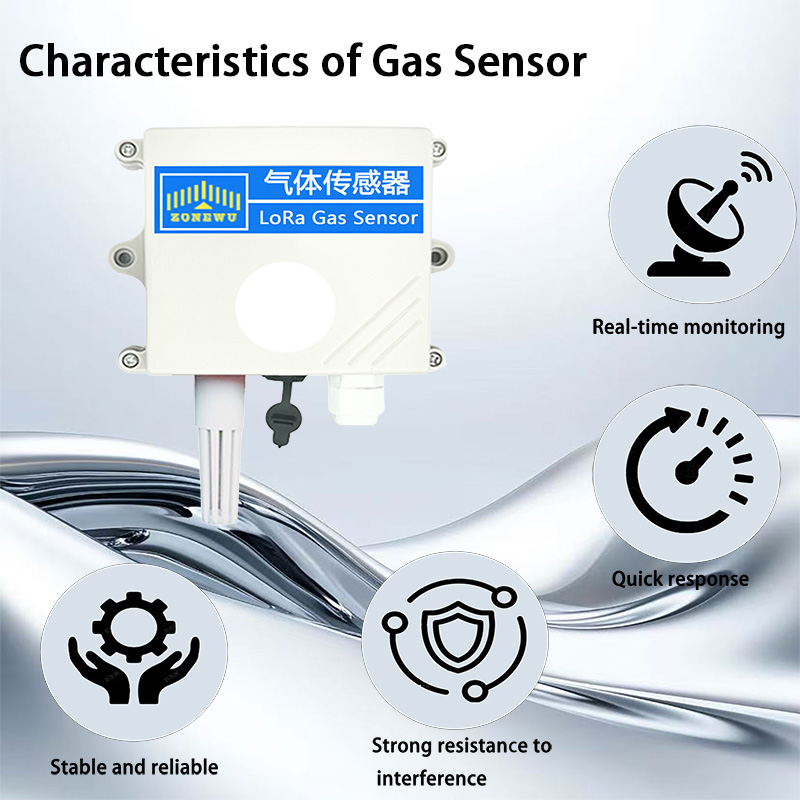

xiamen ZoneWu LoRaWAN Gas Sensor H2 Sensor Features:



It can meet the needs of people to detect hydrogen toxicity and whether it is leaking, and ensure safety.



Our company has a unique compensation algorithm and performs several standard gas marking stages, which makes the equipment respond fast, data accurate and stable.



Can accurately monitor the hydrogen concentration in the surrounding environment, not missing any change.



Use 10-30V DC wide voltage power supply, the power supply requirements are not high, convenient to use.



With RS485 interface, it is convenient to connect other devices for data transmission.



Supports standard ModBus RTU protocol, good data communication compatibility, and can cooperate with different systems.



Product Parameters

Power supply 10~30V DC
Output signal RS485/4-20mA/0-5V/0-10V
Power consumption 0.9W (RS485), 0.12W (Analog)
Measuring range 0-1000ppm/0-40000ppm
Accuracy ±5%FS
Resolution 1ppm
Temperature range -40℃~+80℃
Humidity range 0~100%RH
Temperature and humidity accuracy ±0.5℃(25℃), ±3%RH(60%RH, 25℃)
Working environment -20~50℃, 15~90%RH, no condensation
Pressure range 90~110kPa
Stability ≤2% signal value/month
Response time 1000ppm ≤70s
4000ppm ≤60s
Preheating time ≥5min
Zero drift 1000ppm ≤±10ppm
4000ppm ≤±20ppm
Repeatability ≤2%
Service life ≥24 months
Product Applications
  1. It adopts imported first-line electrochemical sensors, which are stable and durable.
  2. Various measurement range options, 0~1000ppm, 0~40000ppm.
  3. High measurement accuracy, up to ±5%FS, and repeatability up to 2%.
  4. Optional high-quality OLED display allows the values to be viewed directly on site and displayed clearly at night.
  5. The on-site power supply adopts 10~30V DC wide voltage power supply, which can adapt to various DC power sources on site.
  6. This hydrogen sensor adopts a wall-mounted waterproof housing, which is easy to install and has a high protection level and can be used in harsh on-site environments.

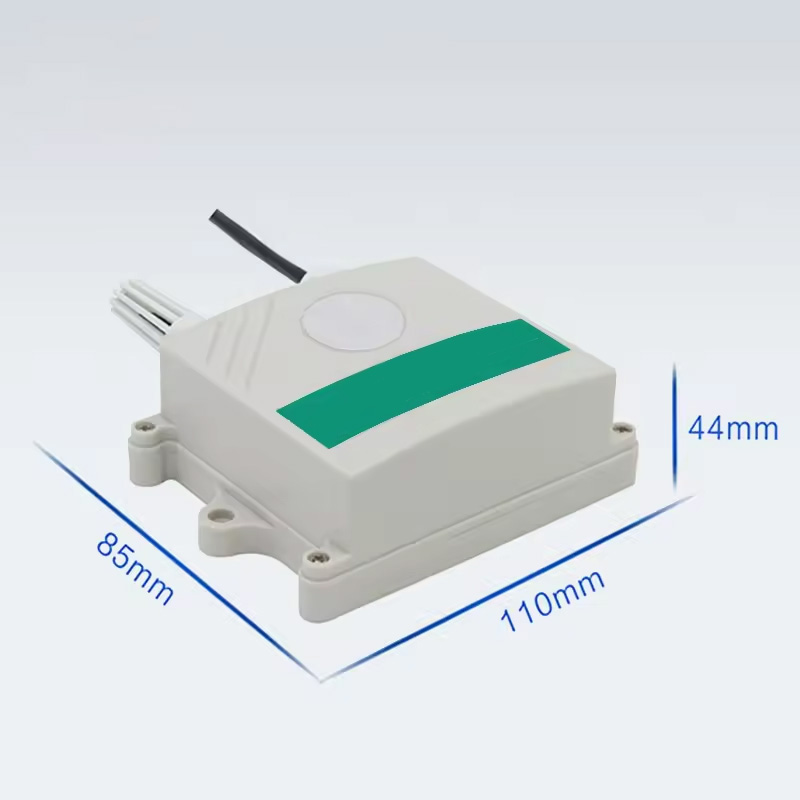

Detailed Images





Common knowledge of  H2



What can hydrogen sensors do

It can test the toxicity of hydrogen gas and whether it is leaking to ensure environmental safety.



How does it accurately detect

A unique compensation algorithm and multiple stages of standard gas marking are used to achieve high accuracy and high stability detection.



What are the requirements for the power supply

Support 10-30V DC wide voltage power supply, power supply adaptability.

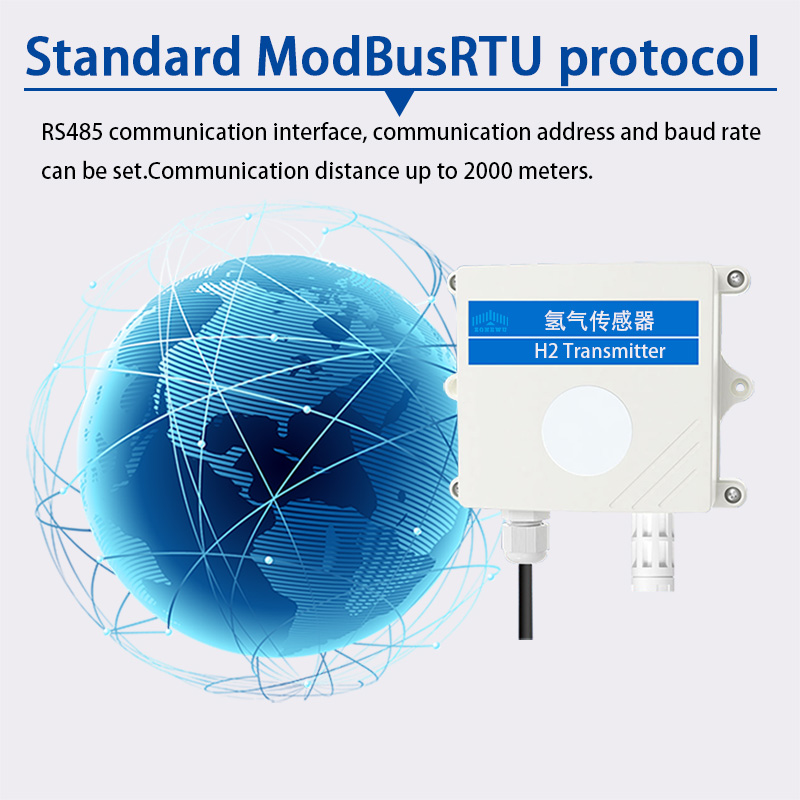

What are the communication-related features

With RS485 interface, support standard ModBus RTU protocol, convenient data transmission and system docking.



What is the reaction speed when detecting hydrogen gas concentration

The reaction is rapid and sensitive, and changes in hydrogen concentration can be quickly detected.



What is the core detection principle

Electrochemical sensors imported from abroad are usually used as the core detection component.



Application Scenarios

Industrial production

Waste gas emission monitoring: Conduct real-time monitoring of industrial waste gas emissions to ensure that waste gases meet emission standards and reduce pollution to the environment.



Environmental inspection

Air quality monitoring helps people understand air quality and protect the environment and health by detecting harmful gases such as sulfur dioxide.

Safety protection

In coal mines and tunnels, gas sensors detect toxic and harmful gases such as methane and warn against accidents.



FAQ
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.



3.DO you offer free samples?



A:Sorry,we don't offer free samples. After ordering in bulk, we will deduct the sample fee from the second order.



Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.
